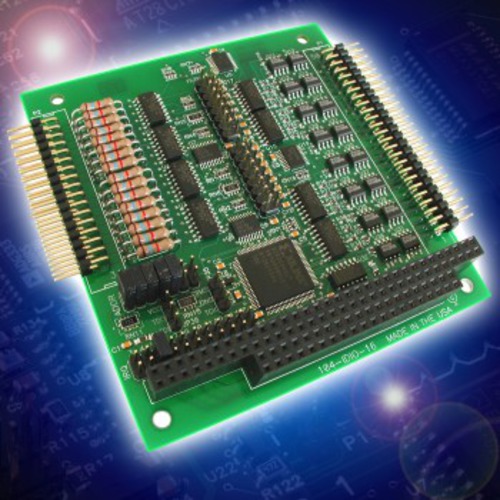

The Model 104-IDIO-16 is a 32-channel PC/104 utility board featuring 16 optically isolated inputs and 16
optically isolated solid state outputs. The isolated, non polarized inputs may be driven by either DC sources
of 3-31V (or higher by special order) or AC sources at frequencies of 40Hz to 10KHz. Optically isolating the
digital inputs from each other, and from the computer, assures smooth, error-free data transmission in noisy,
real-world environments. The 16 input channels are available via a 34-pin IDC type header. The fully
protected solid state outputs, capable of sourcing 1A each, are inherently more reliable than electromechanical
relays and give system architects a more robust product to design with. The solid state outputs are available
via a 50 pin IDC type header.
Each input circuit includes a jumper selectable slow/fast filter to accommodate AC inputs and is also useful
for slow DC inputs in noisy environments. The filter may be manually disabled to increase the boards typical
response time to 10 µsec when used with faster DC inputs. The input impedance is 1.8K Ohms to
accommodate a wide input range.
The board is installed by jumper selecting base addresses and IRQ. System interrupts are software
controlled, enabling the board to generate an interrupt whenever one or more of the isolated digital inputs
changes state. This eliminates the need for constant polling and greatly frees up system resources. Model
104-IDIO-16E is an economy version available without the interrupt Change of State Detection feature.
The 104-IDIO-16 is designed for use in both commercial and optionally in industrial environments of 0 to +70°C
and -40 to +85°C, respectively.
Models 104-IDIO-8 and 104-IDIO-8E feature 8 optically isolated inputs and 8 optically isolated solid state outputs. Also available is Model 104-IDO-16 which has 16 outputs only and 104-IDO-8 which is the 8 outputs version.
The 104-IDIO-16 series is supported by most operating systems and include a free DOS, Linux and Windows 95/98/Me/NT/2000/XP/2003 compatible software package. This includes sample programs and source code in "C" and Pascal for DOS, and Visual Basic, Delphi, C++ Builder, and Visual C++ for Windows.
Specifications
Isolated Digital Inputs
- Number of inputs: Sixteen
- Type: Non-polarized, optically isolated from each other and from the computer. (CMOS compatible)
- Voltage Range: 3 to 31 DC or AC (40 to 10000 Hz)
- Isolation: 500V*(see manual) channel-to-ground or channel-to channel
- Input Resistance: 1.8K Ohms in series with opto coupler
- Response Time: 4.7 mSec w/filter, 10 µSec w/o filter (typical)
- Interrupts: Software controlled with jumper IRQ selection (models 104-IDIO-16 and 104-IDIO-8)
Isolated Digital Outputs
- Number of outputs: Sixteen Solid State FETs (off @ power up).
- Output Type: High Side Power MOS FET Switch.
- Protection Features: Portected against short circuit, over-temperature, ESD, can drive inductive loads.
- Voltage Range: 5-35VDC recommended (user supplied) for continuous use, 50VDC absolute max.
- Current Rating: 1A maximum.
- Current Limit: 5A
- Turn-on time: Rise time: 7µsec
- Turn-on delay: 50µsec.
- Turn-off time: Fall time: 10µsec
- Turn-off delay: 50µsec.
Interrupts
- Interrupts: Software controlled with jumper IRQ selection (models 104-IDIO-16 and 104-IDIO-8)
Power Required
- +5VDC @ 0.150A (all FETs ON)
Environmental
- Operating Temp: 0° to +70°C, (-40 to +85°C Optional)
- Storage Temp: -40 to +85°C
