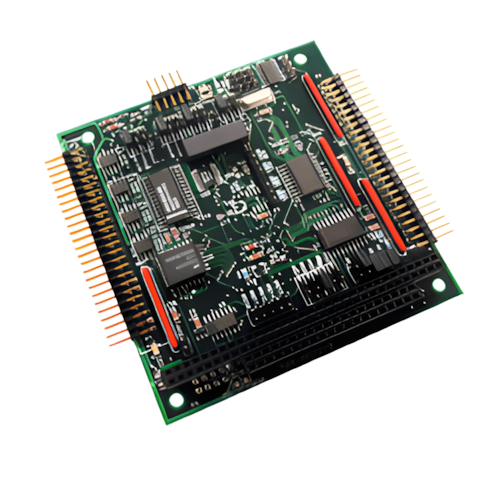

Product Description:
FEATURES
Eight true differential inputs, or eight single-ended inputs optional
Programmable input ranges of:
100KHz sampling rate
On-board pacer clock and counter timers
Four double-buffered analog outputs
Jumper selectable output ranges of:
24 digital I/O lines, type 82C55 with change of state detect on port C, buffers on ports A & B
Flexible configurations to suit your needs
Factory Options: (call for pricing and availability)
- 4-20mA inputs with offset
- Channel by channel pre-amplifier gains of 1-100
- +5VDC only operation
- 0 to +70°C and -40 to +85°C versions available
FUNCTIONAL DESCRIPTION
FLEXIBILITY
The following functions
are available in many configurations giving the user the ability
to specify exactly what’s needed. Interrupts are individually or globally enabled or
disabled via software.
A status register is provided to determine the interrupt source.
ANALOG INPUTS
The Analog Inputs feature software programmable gain with ranges of 0-5V, 0-10V, ±5V,
and ±10V. The configuration employs an instrumentation pre-amplifier per
channel which allows for differential inputs, 200V Common Mode Rejection, high input
impedance, and optional factory channel by channel pre-settable gain (1-200) to accommodate low-level inputs from sensors. Inputs 4-20mA are available as a factory-installable option.
ANALOG OUTPUTS
Output ranges of 0-5V, 0-10V, ±5V and ±10V, are field selectable with jumpers. Note
that four conversions may take place at once and that, since the D/As are double buffered,
data for the next conversion may be loaded simultaneously.
COUNTER TIMERS
The circuit uses an 82C54 (3 sixteen bit counter/timers). The user has access to each
counter/timer’s gate, clock, and output signals. The output of counter two can be used to
generate an interrupt. The software package supports counting events, frequency output,
pulse and frequency measurement.
DIGITAL I/O
The circuit uses an 82C55A PPI with mode 0 supported. Ports A and B (16 lines) are
buffered and pulled up to 5V. Port C features Change of State detection.
SOFTWARE
The package includes a graphical Windows setup program detailing all jumper settings. Also included are drivers, samples and utilities for DOS, Windows operating systems (Windows 95, 98, Me, NT4, 2000, XP, and 2003), and Linux. Full register-level support for use in custom real-time or embedded operating systems.
Specifications
Analog Inputs
- No. of Channels: Eight true differential inputs, or eight single-ended inputs optional
- Programmable Ranges: 0-5V, 0-10V, ±5V, ±10V, (4-20mA as a factory option)
- Conversion Frequency: 100K Samples per Second
- Resolution: 12-Bit
- Differential Input Impedance: 2Meg Ohms w/pre-amp
- Preamplifier gain: 1 standard, Optional gains up to 200 upon request
- Reference Output Voltage: 4.096V ±0.02V
- Common Mode Voltage: ±200V
- Common Mode Rejection Ratio: 86dB typical
- Integral Nonlinearity: 1 LSB maximum, Monotonic
- Full Power-Down Mode: 1µA maximum
- Standby Power-Down Mode: 400µA maximum
- Accuracy: 0.2% of full scale
- Gain Temperature Coefficient: 6 ppm / °C typical, bipolar; 8ppm/ °C typical, unipolar
- Noise levels: ±1 LSB typical
- A/D triggering method: Software selectable: programmable timer, program command
Analog Outputs
- Channels: 4
- Voltage Ranges: 0-5V, 0-10V, ±5V, ±10V
- Conversion Frequency: 100K Conversions per second
- Resolution 12-Bit
- Output Drive Capability: 3 mA per channel
- Power-Down Mode Current Draw: 1µA, maximum
- Relative Accuracy: ±2 LSB, typical
- Trigger Source(s): Software selectable: programmable timer, program command
Digital Inputs/Outputs
- Programmable Peripheral Int.: 82C55A
- Channels: 24, pulled up to 5V via 10K (or pulled down to ground factory option)
- Buffered Channels: 16 (ports A & B)
- Input Voltage: Logic low: -0.03V min, 0.8V max;
- Logic High: 2.2V min, 5.8V max
- Input Current: ±1uA Max
- Output Voltage:
- Logic low: 0.0V min, 0.4V max
- Logic High: 3.7V min, 5.0V max
- Output Current:
- Ports A and B
- Logic low: 64mA Sink
- Logic High: 32mA Source
- Port C
- Logic low: 2.5mA Sink
- Logic High: 2.5mA Source
- Modes supported: Mode 0 (1 and 2 are factory options)
- Change of State Detection 8 inputs (port C)
Counter/Timer
- Peripheral Interface Timer: Type 82C54
- Counters 3 x 16-Bit down counters
- Clock Frequency Output: 1Mhz
- Inputs/Outputs Fully Buffered
- Native Modes: Pulse on terminal count, retriggerable one-shot, rate generator, square wave, software triggered strobe, hardware triggered strobe.
- Software Support: Event Counter, Frequency Output, Frequency and Pulse Measurement
General
- Power Required (using ±12V and +5V):
- +12VDC: 30 mA typical
- -12VDC: 30 mA typical
- +5VDC: 40 mA typical
- Power Required (using only +5V, with the optional DC/DC Converter):
- Environmental: 0°C to +70°C standard, optional -40°C to +85°C
- Interrupt Requests: Eleven channels, IRQ 3-7, 9-12, 14, 15
- Interrupt Status Register: Indicates source(s) of interrupt
- Interrupt Enable/Disable: Software Controlled
|
