6 channels of quadrature encoder inputs and channel index inputs |
|
INTERNATIONAL GROUND SHIPPING: For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation No other hidden fees will be collected from you when packages arrive. Guaranteed [ Detailed Explanation ] |
Product Description: FEATURES Applications

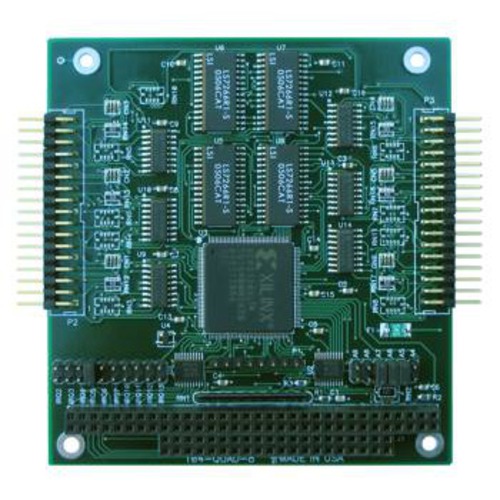

FUNCTIONAL DESCRIPTIONThe 104-QUAD-8 card is a general purpose Quadrature Encoder Counter/Interface board. It is provided in the popular 104 format and conditions and monitors the outputs of 8 encoders. These functions include anything that can be programmed into the versatile LSI/CSI LS7266R1 integrated circuit. These functions include speed, direction and total count. By providing these functions, it frees the computer for higher level applications. The ability to provide an interrupt for a parameter, such as total count, further frees the computer from the necessity of constantly reading the position of an encoder. Interrupts are directed to levels #2 through #7, #10 through #12, and #15 by jumper installation. The 104-QUAD-8 card is designed for industrial applications. Each input line is buffered and capable of utilizing inputs up to 25 volts. A +5 Volt source is available for appropriate encoders. The conditioned inputs are connected to appropriate LSI/CSI LS7266R1 integrated circuits. These circuits are the heart of the card's operation. They may be programmed for a variety of functions. The 104-QUAD-8 occupies 32 bytes of I/O address space. The base address is selectable via jumpers anywhere within the range of 100-3E0 hex. An illustrated setup program is provided with the 104-QUAD-8 card. Interactive displays show locations and proper settings of jumpers to set up board address and interrupt levels. SOFTWAREThe one language not recommended for programming interrupt service routines is any version of Visual BASIC. The recommended programming languages for IRQ based applications are Delphi and C++ Builder.
Power Consumption
Inputs
Counters
Interrupt Controller
Environmental
|
