ACCES I/O

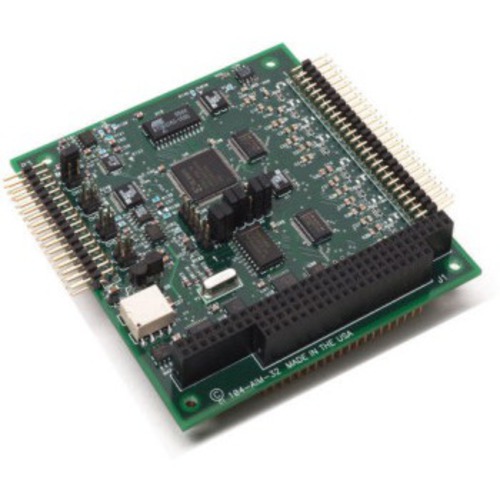

The 104-AIM-32A Kit consists of one 104-AIM-32 and one 12-bit 8-input A/D board


1092434_ACCESIO_PRODUCTS__104AIM32A.jpg-
Manufacturer ACCES I/O
Mfg. Part # 104-AIM-32A
ITEM# 572716
Unit Price $446.35 (~CAD$556.38)
Availability In Stock
Buy


Shipping and Handling:
 INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation

No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]
[ View Detail Product Info ]


Product Description:
The 104-AIM-32 is an analog signal multiplexer conforming to the PC/104 standard. The card will multiplex and condition 16 differential or 32 single-ended analog signals before passing them to an analog-to-digital converter card like the 104-AIO12-8. A system may comprise one to seven of these cards in tandem with one 104-AIO12-8 A/D converter board. The 104-AIM-32 card may be used as part of a large data acquisition system. The 104-AIM-32A Kit consists of one 104-AIM-32 and one 12-bit 8-input A/D board.

A removable screw-terminal block (Model UTBK-50) is optionally available for the termination of the input signals, which can come from a variety of sources: thermocouples (J,K,T,E,S,R, and B), three-wire RTD's (both 392-and 385-alpha), strain gages, 4-20mA current inputs as well as DC and AC voltage inputs. Optionally, bridge completion circuit, current to voltage circuit, and current sourcing circuits for the RTD's may be installed at the factory. A precision 15VDC sensor excitation source is supplied as part of any applicable factory signal conditioning option per channel. To provide reference junction compensation for thermocouple measurements an optional temperature sensor can be installed on the input terminal block. When selected by the multiplexer an input is filtered, amplified, and offset. A convenient feature of this card is that it can be used with mixed-range analog inputs. Each of the 16 differential or 32 single-ended input channels and the 6 voltage ranges for each channel are independentl y software selectable. A mix of differential and single-ended channels as well as different sensor interface configurations for each channel is possible. A major feature of the 104-AIM-32 is automatic offset and gain error correction using digital potentiometers controlled by correction coefficients stored on the card. Calibration software is provided.
  • Designed to pair with an A/D board to increase channel count and signal conditioning capabilities
  • 32 single-ended or 16 differential inputs
  • 6 software programmable ranges:
      ±25mV, ±50mV, ±0.1V, ±2.5V, ±5V, ±10V
  • Up to 7 104-AIM-32s can be stacked per A/D board for up to 224 S.E. or 112 diff. inputs
  • +5VDC only operation
  • Precision 15VDC sensor excitation
  • 0 to 70°C operating temperature (-40 to +85°C Optional)
  • Input Signal Conditioning Options:
    • 4-20mA inputs
    • RTD measurement
    • Thermocouple measurement
    • Voltage divider on each input
    • RC filters on each input
    • Bridge completion configuration
Specifications


Analog Inputs

  • 32 Single-Ended or 16 Differential inputs
  • Voltage Ranges: ±25mV, ±50mV, ±100mV, ±2.5V, ±5V, ±10V
  • Settling Time: 9µsec to .01% (see online manual for details)
  • Maximum Input Voltage without damage: 250V
  • Input Impedance: 5MΩ Differential, 10MΩ Single Ended
  • Common Mode Voltage: ±15V
  • Temperature Scale Factor: +10mV/°K @ 25°C
  • ESD Protection: up to 2000V
  • Current: 4 to 20mA (factory option)
  • Common Mode Rejection Ratio: Over 100dB
  • Temperature Error @25°C: 1°C typical

Multiplexer Outputs

  • Channels: 1 of 7, jumper selected 8th channel is temp sensor output is used.
  • Output Drive Capability: 600Ω or 10mA
  • Voltage Range: ±10 (x1, x2, x100, x200 gain); ±5 (x0.5, x50)
  • Slew Rate: 2V/µsec

General

  • Power Required: +5V @ 200mA with with no load for excitation
  • Interrupt Requests: none
  • Gain Nonlinearity: ±0.005%
  • Humidity Tolerance: 5 to 95% RH non-condensing
  • Operating Temperature: 0 to 70°C, (-40 to 85°C Optional)
  • Storage Temperature: -55 to +125°C
  • Temperature Coefficient of Gain: Removed by Gain Calibration



[Disclaimer for Product Information]
