IBASE Technology
Motherboard, ITX, LGA775 for Core2Duo, Q965+ICH8, VGA, 82566DC GbEx1 & 88E8053 GbEx1, PCI-e(16x), RoHS

Manufacturer	IBASE Technology
Mfg. Part #	MI900F-R
ITEM#	570988
Unit Price	$268.00 (~CAD$334.07)
Availability	In Stock
Buy

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

[ View Detail Product Info ]

Product Description:

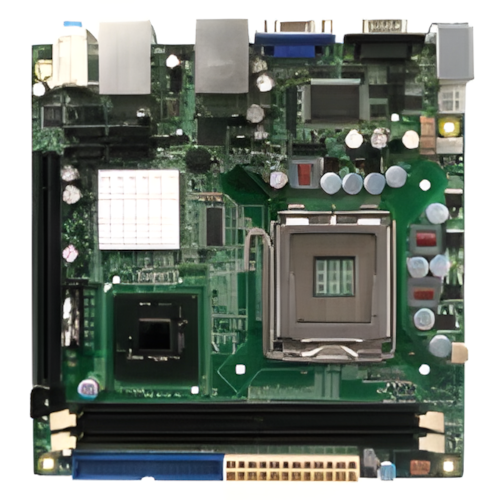

Intel® Core™2 Duo Mini-ITX Motherboard with Intel® Q965 Chipset

Supports Intel® Core™2 Duo processors Up to 2.66GHz, 533/800/1066MHz FSB
2x DDR2 DIMM, Max. 4GB
Integrated Q965 Express VGA with PCI-E(x16) expansion slot to support additional DVI/LVDS/VGA interface for dual independent display
1x 10/100BaseT or 2x Gigabit LAN
4x SATA II, 6x USB 2.0, 2x COM
1x PCI-E(x16), Watchdog timer, Digital I/O

SPECIFICATIONS

CPU Socket
LGA775

CPU
Supports Intel® Core™ 2 Duo processors

CPU Front Side Bus ( FSB )
533MHz / 800MHz / 1066MHz

Chipset
Intel® Q965 chipset
ICH8

BIOS
Award BIOS, ACPI supported

System Memory
Two DDR2 sockets support up to 4GB DDR2 SDRAM
PC533/667/800 DDR SDRAM

Integrated VGA
Intel® Q965 integrated graphic sybsystem (GMA3000)
Supports dual independent display through on board VGA and PCI-e x16 expansion adapter (DVI or LVDS) or VGA card

LAN
MI900 supports Intel 82562V 10/100 BaseT Ethernet
MI900F supports Intel 82566DC Gigabit Ethernet and Marvell 88E8053 PCI-E Gigabit Ethernet

Audio
ICH8 integrated audio with Realtek ALC888 codec

LPC I/O
Winbond W83627HF chipset
Supports COM1 (RS-232), COM2 (RS-232/422/485), hardware monitoring

IDE
JMicron JM368 (PCI-e to PATA) supports 1 PATA channel

Serial Ports
One RS-232 and one RS-232/422/485 COM ports

Serial ATA
Supports 4 SATA II ports

USB (2.0)
Supports 6 USB ports (4 ports + 2 ports via pin header)

Keyboard and Mouse Connector
PS/2 type

Watchdog Timer
Generates system reset; 256 levels

Hardware Monitoring
Built in W83627HF; monitors system/CPU temperature and voltage status

Digital I/O
4 in / 4 out

Expansion Slot
1 PCI-e (x16) slot
8x2 pin header for adaptor card:
- ID394 (2 or 4 serial ports)
- ID395 (TPM 1.2 function)

Edge Connectors
PS/2 KB/Mouse Mini DIN, VGA CRT, COM1, 2x RJ-45, 4x USB, Triple jack for audio

Onboard Connectors/Headers
4x SATA, USB5/6, COM2, Digital I/O, 7.1 channel audio, IDE (40-pin), CPU fan, system fan, ATX power (24-pin + 4-pin)

Form Factor
Mini-ITX Motherboard

Dimensions
170mm x 170mm

Operating Temperature
0°C~60°C (32°F~140°F)

Storage Temperature
-20°C~80°C (68°F~176°F )

Relative Humidity
10%~90% (non-condensing)
