Introduction

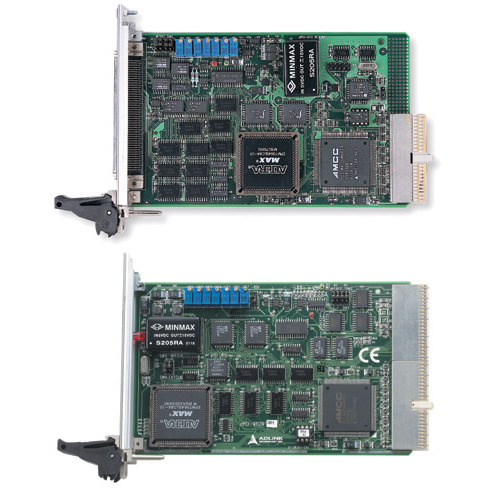

ADLINK cPCI-9112 and cPCI-9112R are 16-CH, 12-bit, 110 kS/s multi-function DAQ modules for PXI/CompactPCI form factor. The cPCI-9112 devices feature flexible configurations on analog inputs. They provide analog inputs with 4 programmable input ranges for both bipolar and unipolar inputs. The A/D on the cPCI-9112 devices features a sampling rate of up to 110 kS/s with resolution at 12 bits. The devices support automatic analog input scanning, and offer a differential mode for 8-CH analog inputs and maximum noise elimination, as well as single-ended modes for 16-CH analog inputs.
