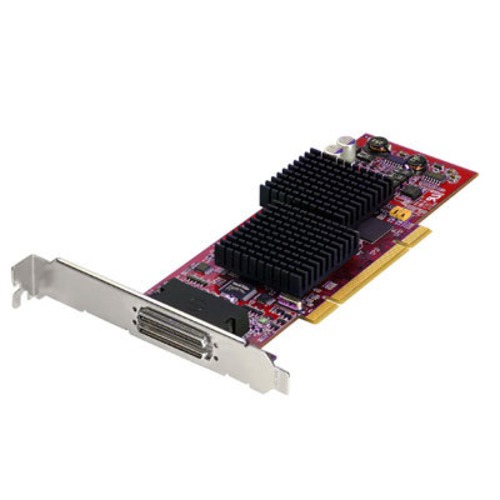

MODEL- 100-505130         VENDOR- A T I

FEATURES- FireMV 2400 128MB PCI Quad, Retail pack
       ATI's FireMV multi-view 2D workstation acceleration cards are
        designed exclusively for the financial and corporate marketplaces.
        Offering dual and quad monitor cards based on the PCI and PCI
        Express bus architecture, FireMV products ensure system
        compatibility and investment protection.
       The FireMV series of professional 2D graphics cards boasts
        innovative low profile dual monitor design which means that all
        FireMV cards will fit into both Low Profile and Full Height
        systems. This enables integration into a wide range of machines
        with a smaller number of cards to qualify. The same applies for the
        new low profile FireMV quad monitor cards - their super space
        efficient architecture lets you choose even the smallest systems --
        including docking stations -- and still be able to achieve
        simultaneous output to four displays.
       Docking stations from companies like Lenovo offer desktop expansion
        solutions to notebook configurations through a single PCI slot.
       The FireMV design utilizes passive cooling for a higher mean time
        between failures (MTBF) providing greater reliability. Its
        inherently lower power consumption helps reduce the overall power
        load without sacrificing performance--an increasingly important
        benefit to sites with a large installed user base.
* Hardware acceleration of the following:
   - Anti-aliased points and lines or full scene anti-aliasing (2X, 4X, 6X)
   - 3D lines and triangles
   - Stipple points
   - Two-sided lighting
   - Up to 8 light sources
   - Directional and local lighting
   - OpenGL overlay planes
   - Occlusion culling
   - 6 user defined clip planes
   - OpenGL polymode functions
   - 32-bit (24+8-bit stencil) Z Buffer
   - Fast Z and color clears
   - Full DX9 vertex shader support with 4 vertex units
   - Quad-buffer stereo support 3
* SMARTSHADER Technology
   - Programmable pixel and vertex shaders
   - 16 textures per pass
   - Pixel shaders up to 160 instructions with 32-bit floating point
     precision for each RGBA component.
   - Multiple render target support
   - Shadow volume rendering acceleration
   - High precision 10-bit per channel frame buffer support
* SMOOTHVISION Technology
   - 2X/4X/6X anti-aliasing modes
   - High performance adaptive algorithm with programmable sample patterns.
   - 2X/4X/8X/16X anisotropic filtering modes
   - Adaptive algorithm with bi-linear (performance) and tri-linear
     (quality) options.
* HYPER Z Technology
   - 3-level Hierarchical Z-Buffer with early Z test
   - Lossless Z-Buffer compression (up to 24:1)
   - Fast Z-Buffer Clear

  -- SPECIFICATIONs -----------------------------------
INTERFACE/BUS- 32-bit PCI architecture
MEMORY       - 128MB DDR graphics memory
CHIPSET      - Dual FireMV Graphics Processing Units (GPU)
CONNECTORs   - (1) VHDCI connector with 2 dual DVI-I output cables
DISPLAY SUPPORT-
               Max analog resolution 2048x1536 per display
               Max DVI resolution 1600x1200 per display
               Quad Display Support:
                 - DVI-I and VGA connectors
                 - Independent resolutions and refresh rates for any four
                   connected displays.
FORM FACTOR  - Low Profile/Half-length
www.ati.com
