Product Description:

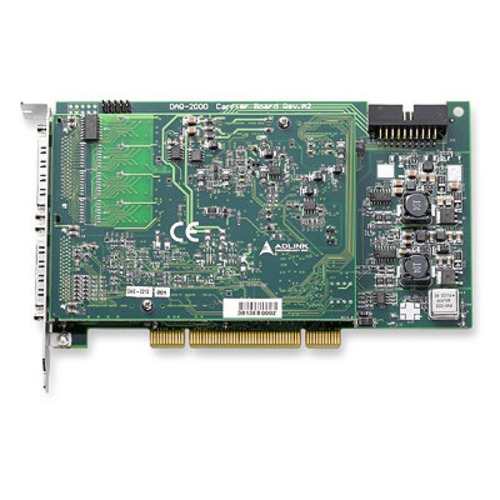

ADLINK DAQ-2213 is low-cost multifunction DAQ cards. The devices can
sample up to 16 AI channels with different gain settings and scan
sequences. It makes them ideal for dealing with cost-effective analog
signals with various input ranges and sampling speeds. These devices
also offer differential mode for 8 AI channels in order to achieve
maximum noise elimination. The DAQ-2213 also feature analog and digital
triggering, 24-CH programmable digital I/O lines and 2-CH 16-bit
general-purpose timer/counters. Like all the other members in DAQ-2000
family, the DAQ-2213 is able to perform the analog input and output
functions at full speed simultaneously and multiple cards can be
synchronized through the SSI (system synchronization interface) bus.
The auto-calibration functions adjust the gain and offset to within
specified accuracies such that you do not have to adjust trimpots to
calibrate the cards.
- Supports
a 32-bit 3.3 V or 5 V PCI bus
- 16-CH single-ended or 8-CH differential analog inputs
250 kS/s sampling rate
- 16-bit A/D resolution
- Programmable gains: x1, x2, x4, x8
- 512-configuration channel-gain queue
- Fully auto calibration
- Multiple cards synchronization through SSI (System
Synchronization Interface) bus
|
