SILICON SYSTEMS

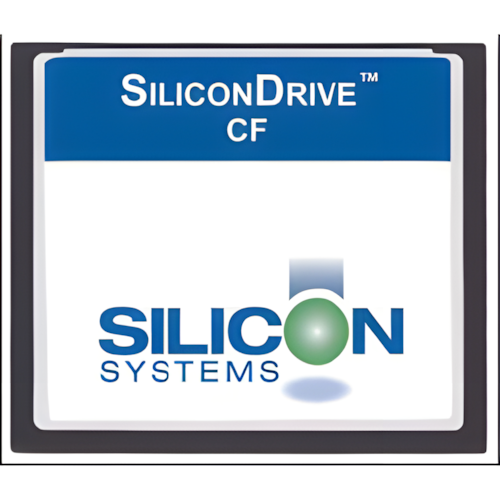

4GB CF (COMPACT FLASH) -40+85C INDUSTRIAL .GRADE


1082577_SILICON_SYSTEMS_SSDC04GI3012.jpg-
Manufacturer SILICON SYSTEMS
Mfg. Part # SSD-C04GI-3012
ITEM# 563022
Unit Price $313.86 (~CAD$391.23)
Availability In Stock
Buy


Shipping and Handling:
 INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation

No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]
Product Description:
SiliconDrive CF is an optimal time-to-market replacement for hard drives and flash cards or in host systems that require low power and scalable storage solutions.

SiliconDrive technology is engineered exclusively for the high performance, high reliability and multi-year product lifecycle requirements of the Enterprise System OEM market. Typical end-market applications include broadband data and voice networks, military systems, flight system avionics, medical equipment, industrial control systems, video surveillance, storage networking, VoIP and wireless infrastructure and interactive kiosks.

Every SiliconDrive is integrated with SiliconSystems patented PowerArmor and patent-pending SiSMART technology to virtually eliminate storage systems failures.

PowerArmor technology prevents data corruption and loss from power disturbances by integrating proprietary voltage detection circuitry and logic into every SiliconDrive. SiSMART acts as an early warning system to eliminate unscheduled downtime by constantly monitoring and reporting the exact amount of remaining storage system useful life.

Numerous SiliconSystems patented and patent-pending application-specific technology can be integrated into SiliconDrive to safeguard application data and software IP. Application notes detailing these performance enhancing options are available under NDA.

Features
  • Integrated PowerArmor technology
  • Capacity: 4GB
  • Supports both 8-bit and 16-bit data register transfers
  • Supports dual-voltage 3.3V or 5V interface
  • Data reliability <1 error in 1014 bits read
  • MTBF >4,000,000 hours
  • ATA-3 compliant
  • Industry standard Type I CF form factor
  • RoHS 5 of 6 compliant
  • Supports PIO modes 0-4 and DMA modes 0-2
  • Operating Temperature Range: -40°C to +85°C
Specifications
  • Access Time (nS): 100 nS
  • Memory Type: Compact Flash (CF)
  • Operating Temp (C) : -45 to 80 C
  • Pins: 50
  • Size: 4 GB
  • Vcc (Max): 3.6, 5.5
  • Vcc (Min): 3.0, 4.5
