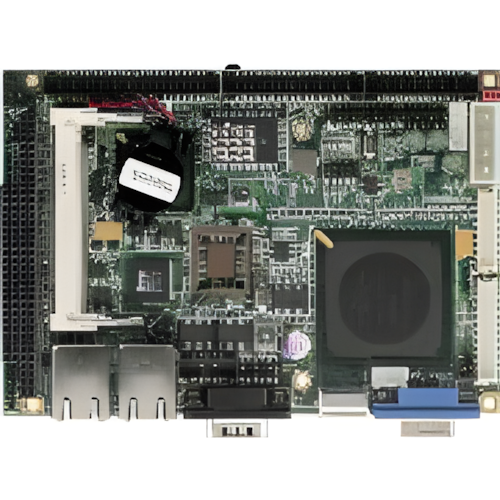

System
- Form Factor
3.5" - Processor
Onboard AMD Geode LX800 series processor (LX700 optional) - System Memory
200-pin DDR SODIMM x 1, Max 1GB for DDR333 and 512MB for DDR400 - Chipset
AMD Geode LX + AMD CS5536 - I/O Chipset
ITE IT8715 + IT8888G - Ethernet
Realtek RTL8139DL, 10/100Base-TX, RJ-45 x 2 - BIOS
AWARD 512KB Flash ROM - Wake On LAN
Yes - Watchdog Timer
Generates a time-out system reset - H/W Status Monitoring
Supports power supply voltages and temperature monitoring - Solid Storage Disk
Type II CompactFlash slot x 1 - Expansion Interface
Mini PCI x 1, PC/104 x 1 - Battery
Lithium battery - Power Requirement
+5V / AT / ATX - Power Consumption (Typical)
AMD Geode LX 800 (500 MHz), DDR 333 1 GB
ATX Power:
LX 700: 1.23A@5V
AT Power:
LX 800: 1.25A@5V - Board Size
5.75" (L) x 4" (W) (146mm x 101.6mm) - Gross Weight
0.88 lb (0.4 Kg) - Operating Temperature
32oF~ 140oF (0oC ~ 60oC) - Storage Temperature
-40oF~176oF (-40oC~80oC) - Operating Humidity
0% ~ 90% relative humidity, non-condensing - MTBF (Hours)
95,234
Display: Supports CRT/LCD Simultaneous display
- Chipset
AMD Geode + TI SN75LVDS83 - Memory
Shared system memory up to 254MB - Resolutions
Up to 1920 x 1440 @ 24bpp for CRT
Up to 1600 x 1200 @ 24bpp for LCD - LCD Interface
Up to 24-bit TTL/LVDS TFT LCD
I/O
- MIO
EIDE x 1 (UDMA-33 x 1), Floppy Disk Drive x 1, Keyboard+Mouse x 1, RS-232 x 1, RS-232/422/485 x 1, Parallel x 1 - IrDA
One IrDA Tx/ Rx header - Audio
MIC-in, Line-in, Line-out, CD-in - USB
Two 5x2 box headers support 4 USB2.0 ports (Does not support wake-up function) - Digital I/O
Supports 8-bit (programmable)
