Product Description:
During
the revolution in design for monitors and TV, the market dictated the
evolution of LCD monitors and LCD TV gradually.
LCD
monitors and TV were created not only for the virtue of saving space,
but also to follow the market trend for brightness, lower power and
ease of use.Embedded product customers
asked for the feature of supporting a DVI connector on boards since
more LCD monitors and LCD TVs have DVI connectors.Furthermore,
customers were concerned not only with the
interfaces, but also needed support for two LCD panels.AAEON is aware
of these demands for converting DVI to TTL and
TTL to DVI signals. The PER-V01B
and PER-V02B modules not only fulfill these
requirements, but also are compatible with other AAEON products.

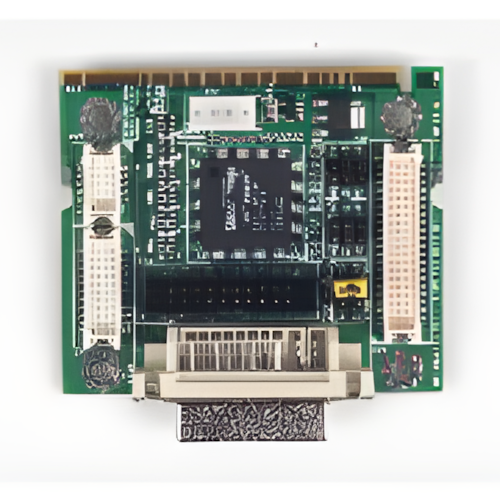

PER-V01B is a module
for converting DVI to TTL signals. The
form factor is Mini-PCI and this revision supports up to 1600x1200
pixel resolution.For the new generation
of AAEON boards such as PCM-8150 and GENE-8310 which have dual view
functions, the PER-V01B can solve the nightmare of trying to adapt
another solution; because it provides a prompt solution in terms of
existing systems to support two LCD panels.In
addition, PER-V01B can be bundled with the PCM-3538T to convert DVI to
LVDS signals.
The PER-V01B
and the PER-V02B provide flexible conversions for customers. Moreover,
they are great for keeping existing
systems the same while changing LCD signals due to changes in LCD
panels. We at AAEON strongly suggest you
to adopt these Mini-PCI modules if you have demands for converting DVI
to TTL or TTL to DVI signals. These two
products will be your cost-effective choices; after all, that is what
you should expect from AAEON, the price/performance leader!
Feature
Supports DVI to TTL LCD Signal Conversion
Resolution Supports up to 1024 x 768
Specifications
- Form Factor
Mini PCI Type III A 2" x 2.35" (50.8mm x 59.6mm)
- Signal Conversion Chipset
Silicon Image Sil1160CTU
- Power Requirement
+3.3V
- Operating Temperature
32oF ~ 140oF (0oC ~ 60oC
)
|
