Product Description:

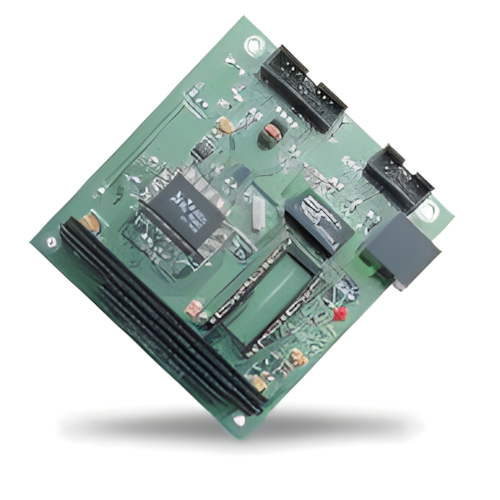

PC/104 Board 10Base-T Ethernet Module
Features:
- Hardware and Software Compatible with Novell NE2000
- Automatically Detects 8-bit or 16-bit Data Bus
Specifications
- I/O address
200, 220, 240, 260, 280, 2A0, 2C0, 300, 320, 340, 380, 3A0
- Interrupt level
IRQ 3,4,5,9,10,11,12 or 15
- Boot ROM address
C0000, C8000, D0000 or D8000H
- Data Bus
8-bit, 16-bit, or auto-sensing
- Standard
IEEE 802.3 10Mbps CSMA/CD 10Base-T Transceiver
- Power Consumption
+5V@400mA max
- Operating Temperature
32oF ~ 140oF (0oC ~ 60oC
)
|
