IBASE Technology
ECX, Socket478 for Core Duo/Solo, 945GM, GbE LANx1, VGA, w/o cooler cable kit (IB38), (RoHS)

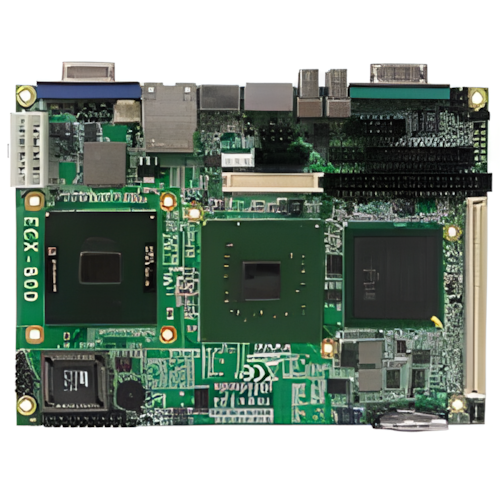

1039054_IBASE_Technology__ECX800R.jpg-
Manufacturer IBASE Technology
Mfg. Part # ECX800-R
ITEM# 525909
Unit Price $283.00 (~CAD$352.76)
Availability In Stock
Buy


[Suggested Accessory Items]
Shipping and Handling:
 INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation

No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]
[ View Detail Product Info ]


Product Description:

FEATURES

  • Fanless Mobile Intel® 945GM Chipset based ECX form-factor platform
  • Supports Intel® Core™ Duo /Solo processors
  • Integrated VGA supporting CRT and TV out interface
  • One DDR2 SODIMM sockets for 2GB memory
  • Gigabit LAN, SATA, USB 2.0, Digital I/O, CF socket

ECX800 SPECIFICATIONS

CPU
Socket 478 or CPU on board
Supports Intel®
IMVP-6 Mobile processors ( Intel® Core™ Duo /Solo processors); up to 2.33GHz

CPU Front Side Bus ( FSB )
533Hz / 667MHz
Chipset
Intel® 945GM chipset
ICH7M
BIOS
Award BIOS, ACPI supported
System Memory
One DDR2 SO-DIMM socket supports up to 2GB DDR SDRAM
PC400/533/667 DDR SDRAM
Integrated VGA
Intel® 945GM integrated VGA for CRT/TV out
Supports DVMT 3.0 for memory allocation
LVDS
Intel® 945GM integrated for 18-bit dual channel LVDS
LVDS connector on board
LAN
PCI Express Gigabit Ethernet
RJ-45 on board
Audio
ICH7M integrated audio with AC97 codec
Supports 5.1 channels

Pin header for audio line out and microphone
Multi I/O
ICH7M, Winbond W83627EHF chipset
Supports 1x IDE, 1x SATA, 2x RS-232, 1x KB,
1x Mouse
IDE Interface
Built in ICH7M; One enhanced IDE channel supports
2 IDE devices; supports UDMA33/66/100

Serial Ports
Two RS-232 ports

Serial ATA
Supports 1 port
USB (2.0)
Supports 4 USB ports (two ports on board, two ports via pin header)
IrDA
Pin header
Keyboard and Mouse Connector
PS/2 type
Watchdog Timer
Generates system reset; 256 levels
Hardware Monitoring
Built in W83627EHF; monitors system/CPU
temperature and voltage status
Digital I/O
4 in / 4 out
Compact Flash
CF connector on solder side
Edge Connectors
VGA CRT, PS/2 KB/Mouse Mini DIN, RJ-45, two USB, S-Video for TV out, COM1
Onboard Connectors/Headers
IDE1 box header, CF connector, digital I/O header, COM2 header, USB 3/4 header, LVDS connector, line out/Mic header, SATA header, FDD, LPT
Form Factor
ECX (Embedded Compact Extended)
Dimensions
146mm x 105mm

Environmental Factors:
   Operating Temperature:
   0°C~60°C (32°F~140°F)

   Storage Temperature:

   -20°C~80°C (-68°F~176°F)

   Relative Humidity:
   10%~90% (non-condensing)





[Disclaimer for Product Information]



Suggested Accessory Items:
 IBASE Technology
  ITEM# Product Name Stock Price
525912 KIT w/ IDEx1, COMx1, SATA, Printer, Audio, Power cable, for (ECX800 series)  (IB38)
[Click for description]
In Stock $32.00 Fill up your shopping cart
