Product Description:
MODEL- 8511-5009-9500 VENDOR- CRU

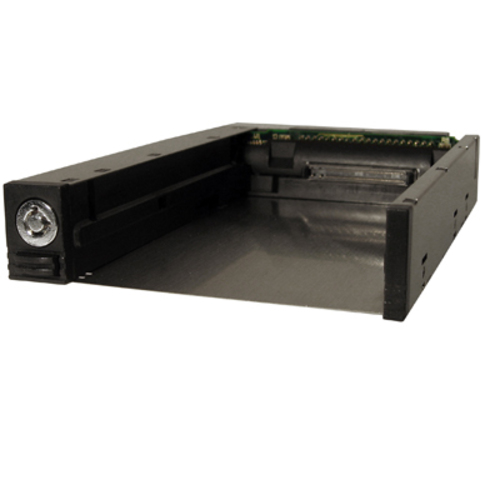

FEATURES- DataPort 25 SFF Removable Drive Carrier ONLY- Black
DP25 Drive-Carrier SATA 3Gb/s, DUAL 3.5" BAY, RoHS.
Removable Carrier Houses One or Two 2.5" Drives
Heavy-Duty Stainless Steel Construction
2-Drive Support RAID-1 Mirroring or RAID-0 Striping
* Thermal Testing
DataPort 25 thermal testing was performed in a standard PC chassis. Two
7200 RPM IDE drives were installed in a DP25 carrier. An Iometer test
was run to simulate a high-demand file server application. Temperatures
were measured on the motors of both drives and the top of the upper
drive. Highest temperatures were found on the drive motors. After two
hours, 47.1 degree C was measured on the upper drive motor. Subsequent
measurements hovered around 46C. To ensure accurate results, testing
continued until after the drive temperatures had stabilized. After five
hours of continuous testing, hard drive temperatures remained well below
the drive manufacturer's specification for maximum operating temperature
of 55.0 degree C.
-- SPECIFICATIONs -----------------------------------
DRIVE CARRIER - Supports one or two 9.5mm low-profile drives
CONSTRUCTION - Heavy-duty stainless steel and die cast metal construction
INTERCONNECT - Rated at 25,000+ insertions
CONNECTOR - Standard floppy power connector for ease of install
DIMENSIONS - 79mm W x 26mm H x 133mm D
www.cruinc.com
|
