Product Description:

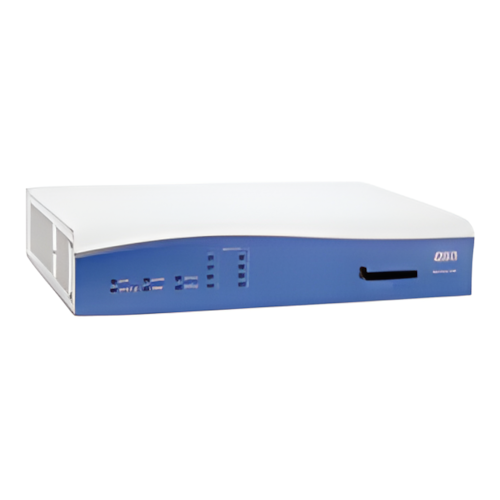

The NetVanta 3448 is a Multiservice Access Router that delivers the
high-packet throughput required for IP Telephony, corporate
connectivity, and Internet access. This performance-enhanced platform
delivers wire-speed throughput, even with advanced services like QoS,
NAT, Firewall, and VPN-enabled.
Device Type |
Router |
Form Factor |
External - modular - 1U |
Built-in Devices |
LED panel |
Installed
Modules Qty (Max) |
0 (installed) / 1 (max) |
Width |
11.8 in |
Depth |
7.5 in |
Height |
1.7 in |
Memory |
RAM |
128 MB |
Flash Memory |
32 MB |
Networking |
Connectivity
Technology |
Wired |
Integrated Switch |
8-port switch |
Data Link
Protocol |
Ethernet, ATM, Fast Ethernet, HDLC,
Frame Relay, PPP, MLPPP |
Network /
Transport Protocol |
ICMP/IP, IPSec, PPPoE, PPPoA, PAP |
Routing Protocol |
OSPF, RIP-1, RIP-2, BGP, IGMPv2,
PIM-SM, static IP routing, GRE |
Remote
Management Protocol |
SNMP 3, HTTP |
Communication
Mode |
Full-duplex |
Status Indicators |
Link activity, power, status |
Features |
Full
duplex capability, firewall protection, switching, auto-sensing per
device, IP-routing, DHCP support, NAT support, hardware encryption,
power over Ethernet (PoE), NAPT support, VLAN support, reverse NAT
support, Syslog support, DoS attack prevention, content filtering, ALG
support, DiffServ support, manageable, E-mail alert, firmware
upgradable, Weighted Fair Queuing (WFQ), SMTP traffic control, Quality
of Service (QoS) |
Compliant
Standards |
IEEE 802.3, IEEE 802.1D, IEEE
802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.1w |
IP Telephony |
VoIP Protocols |
SIP |
Expansion / Connectivity |
Expansion Slots
Total (Free) |
1 ( 1 ) x CompactFlash Card Ý
1 ( 1 ) x expansion slot |
Interfaces |
2
x network - Ethernet 10Base-T/100Base-TX - RJ-45 Ý 1 x
management -
console - 9 pin D-Sub (DB-9) Ý 8 x network / power - Ethernet
10Base-T/100Base-TX - RJ-45 |
Miscellaneous |
Encryption
Algorithm |
SSL |
Authentication
Method |
SecurID, Secure Shell (SSH), RADIUS,
PAP, CHAP, TACACS+ |
Compliant
Standards |
CE, CSA, UL, cUL, RoHS |
Power |
Power Device |
Power supply - internal |
Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
Power
Consumption Operational |
25 Watt |
Software / System Requirements |
OS Provided |
ADTRAN OS |
Environmental Parameters |
Min Operating
Temperature |
32 °F |
Max Operating
Temperature |
122 °F |
Humidity Range
Operating |
0 - 95% |
|
