Product Description:
Features:
ATA-5 Compatible
Support True-IDE Interfaces

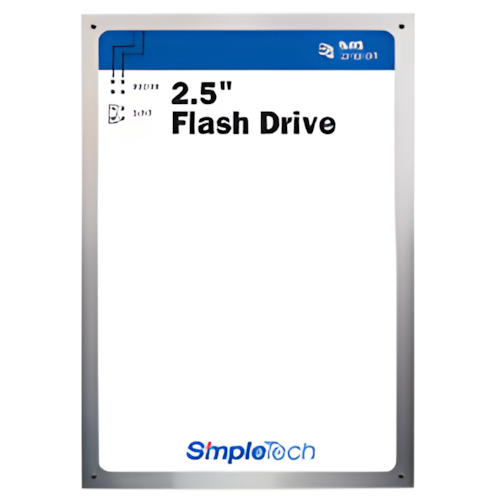

2.5" Ruggedized Enclosure with 44 Pin IDE Connector
Endurance Guarantee of 2,000,000 Write / Erase Cycles
Configures to Master or Slave IDE Device
5V or 3.3V Power Supply
Completely Solid-State ( No Moving Parts )
7-Byte Detection, 4-Byte Correction ECC Engine
RoHS-6 Compliant Lead-Free
5 Years Warranty
Specification:
Physical Capacity : 4 GB
Sectors / track : 63
Cylinders : 7964
Heads : 16
Data transfer rate to/from host : 16.7 MBytes/s (burst)
Operating Temperature : 0 ~ +70 C
Storage Temperature : -65 ~ +150 C
Humidity : 5% to 95%
Shock : 1K G, half-sine, 0.330 ms to 0.750 ms (per MIL-STD-202G
Method 213B, Condition A)
Vibration : 15G 10Hz - 2KHz (per MIL-STD-202G Method 204D 20
min/sweep, 12 sweeps/axis)
|
