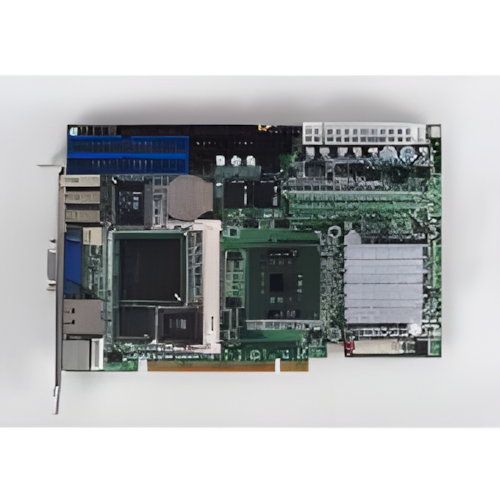

Product Description:
Main Feature
- Onboard Low Power CPU, Pentium M/Celeron M; Socket Version
Optional
- DDR 266 Memory Supports Up to 2GB
- Integrated AGP 4X 2D/3D Graphics Accelerator, LVDS Support
- Integrated AC97 Codec Audio (Daughter Board optional)
- Supports one 10/100/1000Base-T Ethernet (10/100 &GbE
optional)
- Supports Ultra ATA100 & CompactFlash Type-II Storage
- Supports Mini PCI Type-III Socket
- 5 USB2.0/ 1 RS-232, 1 RS-232/422/485/ 1 Parallel/ 1 IrDA
port
- Watchdog Function 1~255 Sec
Specification
- Form Factor
PICMG/PCI Half-size SBC
- Processor
Intel Pentium M / Celeron M CPU, FSB: 400MHz,Onboard
600MHz/ non-cache. (Socket CPU optional)
- Main Chipset
Intel 82852GME + Intel 82801DB (ICH4)
- System Memory
2x200Pin 2.5V DDR DIMM Socket, total up to 2GB,supports
DDR memory (DDR200/266)
- LCD Controller
Integrated on Intel 82852GM, LVDS output, dual display
support
- VGA Controller
Integrated on Intel 82852GM, AGP 4X, dual display support
- Ethernet
10/100Mb or 10/100/1000Mb LAN optional, RJ-45 X1, Intel
82562EZ / 82541GI controller
- Audio (Daughter Board)
Realtek ALC655 AC97 Codec , MIC-in/Line-in/Line-out/CD-in
- BIOS
Award Plug & Play FWH BIOS-4Mb ROM
- IDE Interface
ATA-100 x2 Channel (Supports two ATAPI devices)
- Floppy Drive Interface
One Standard Floppy Disk Drive port, supports up to two
floppy devices
- Serial Port
Two COM ports: (Internal Pin Header , External D-sub x 2)
COM 1: RS-232
COM 2: RS-232/422/485
- Parallel Port
Supports SPP/ EPP/ ECP mode
- Keyboard and Mouse
One Mini-DIN PS/2 Keyboard and Mouse connector; One
internal keyboard pin header
- Universal Serial Bus
Five USB 2.0 Ports; One 5x2 pin header for internal; Two
Type-A Connector onboard
- Compact Flash
Supports CFD Type II connector (Hot swappable)
- Expansion Interface
PICMG/ PCI Interface/ Mini PCI Type III socket
- IR Interface
Supports one IrDA header
- Watchdog Timer
1 ~ 255 sec., can be set with software on Super I/O
- RTC
Internal RTC
- Power Supply
Request ATX 12V, Standard ATX power connector
- Operation Temp.
32F ~ 140F (0oC ~ 60oC)
|
