Product Description:

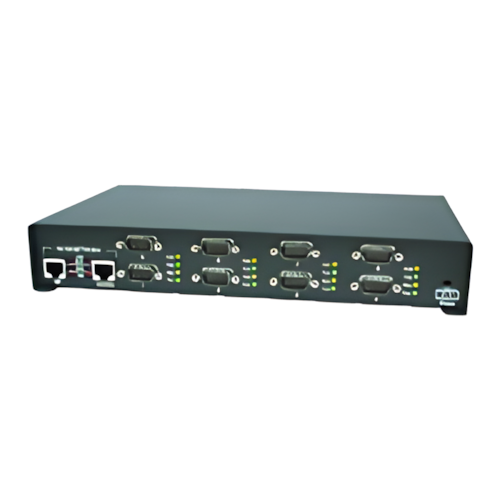

The Comtrol DeviceMaster Serial Hub 8-Port is an eight-port device
server designed for network-enabling serial communications devices.
When used with the included NS-Link driver software and a host PC, the
DeviceMaster Serial Hub enables placement of COM or TTY ports anywhere
on an Ethernet network or across the Internet. In applications where
connecting legacy serial devices to a PC without software changes is a
requirement, a pair of DeviceMaster Serial Hub units can be used to
create a point-to-point serial tunnel across the network that
seamlessly transfers serial data via TCP or UDP socket connections.
Product is fully compliant with the RoHS Directive.
Device Type |
Terminal server |
Width |
10.8 in |
Depth |
6.3 in |
Height |
1.8 in |
Enclosure Color |
Black |
Processor / Memory / Storage |
Processors
Installed |
ARM 44 MHz |
Max Supported Qty |
1 |
RAM Installed (
Max ) |
8 MB |
Flash Memory
Installed (Max) |
4 MB flash |
Networking |
Form Factor |
External |
Ports Qty |
8 |
Connectivity
Technology |
Wired |
Data Transfer
Rate |
230.4 Kbps |
Data Link
Protocol |
Ethernet, Fast Ethernet, RS-232 |
Network /
Transport Protocol |
TCP/IP, UDP/IP, ARP |
Remote
Management Protocol |
SNMP, Telnet, HTTP |
Status Indicators |
Link activity, collision status,
100M device connected, status |
Features |
Flow control, DHCP support, BOOTP
support, RARP support, ARP support |
Expansion / Connectivity |
Interfaces |
8 x serial - RS-232 - 9 pin D-Sub
(DB-9)
2 x network - Ethernet 10Base-T/100Base-TX - RJ-45 |
Miscellaneous |
Compliant
Standards |
CE,
C-Tick, cUL, EN 60950, ICES-003, IEC 60950, CISPR 22, CSA 22.2 No.
60950, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN
61000-4-6, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, EN 55022,
EN 55024, FCC Part 15 A |
Power |
Power Device |
Power adapter - external |
Voltage Required |
AC 120/230 V |
Power
Consumption Operational |
3.2 Watt |
Software / System Requirements |
Software Included |
Drivers & Utilities |
Manufacturer Warranty |
Service &
Support |
2 years warranty |
Service &
Support Details |
Limited warranty - 2 years |
Environmental Parameters |
Min Operating
Temperature |
-34.6 °F |
Max Operating
Temperature |
165.2 °F |
Humidity Range
Operating |
20 - 80% |
|
