Product Description:

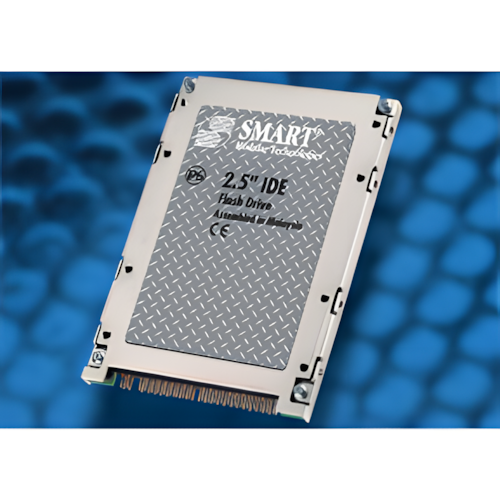

The IDE
Flash Drive brings power of data portability to PA
computing. It provides low power, high capacity mass storage in a IDE
form
factor and works like a hard drive, but has the speed and
transportability of
solid state devices.
These drives
are rugged, reliable and IDE compatible.
Since there are no moving parts IDE Flash Drives provide reliable
operation in
conditions that can be normally hostile to hard disk drives. The lower
operating voltage compared to that of rotating hard drives means
significantly
less operating current, with lower heat dissipation, while avoiding the
high
current requirements of hard drive start-ups.
Features:
Industry standard Serial ATA, compatible with the SATA 1.0a standard
100% compatibility with IDE (PC/AT) interface for seamless
incorporation in most embedded platforms
100% solid state using non-volatile NAND flash memory
Supports both 8 and 16 bit Data Register Transfers
Supports up to PIO Mode-4 and up to Multi-word DMA Mode-2
Supports Master and Slave operation through jumper setting or cable
select
Internal ECC corrects up to 3 random 12-bit symbols of error per
512-byte sector
Industry standard metal enclosure complies with SFF 8200 2.5" Form
Factor Specification
RoHS Compliant
Specification :
Physical Capacity : 8GB
Device Density : 8Gb
LD019B Controller
Read Data Rates, Sustained : 9.5MB/s
Write Data Rates, Sustained : 8MB/s
Host Interface Transfer Rate : 16.6MB/s (burst
with PIO Mode 4)
Access Time : 0.6 mS (Typ)
MTBF : >1,000,000 hours
Data Retention : 10 years
Endurance : >1,000,000 program/erase cycles
Shock : 50G max. @ 11mS
Vibration : 15G peak to peak
Humidity : 5% to 95%
Altitude : up to 80,000 ft.
Low power consumption : operates at 5.0V
(3.3V drive is optional)
2KB block size, 512MB sector size
|
