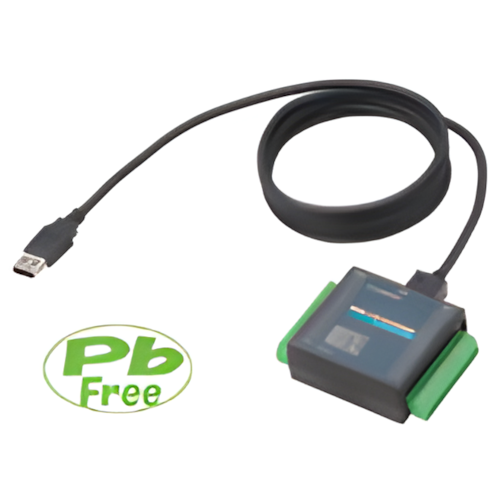

Product Description:
"This
product is a digital input and output terminal for USB2.0. which being
connected to USB interface of a PC and easily perform a digital signal
I/O(12 - 24VDC). �@The input of eight points at the maximum and
the
output of eight points at the maximum can be done. By attached
driver
library[API-USBP(WDM)], It can make applications software for Windows
with various programming languages that support Win32API functions such
as Visual Basic or Visual C++."
Features
- "Eight
points of photocoupler insulation input and photocoupler insulation
open collector output eight points (output rating:greatest 35VDC, 100mA
per one point) are can used."
- "It is based on an
USB2.0/USB1.1 standard, and high-speed transfer in HighSpeed(480Mbps)
is possible."
- It can used
without connecting an outside power supply by bus power drive.
- "It is broken with
a photo coupler, and USB(PC) and input and output interface prevent an
invasion of a noise."
- "It has a
protection circuit(a surge, an overcurrent) of an output transistor
built-in."
- It adopts the
screw type connector that wiring is easy.
Environmental correspondence
Environmental
correspondence : Lead-Free
Digital I/O
- Bus :
USB
- Function
: I/O
- Input point
: 8
- Output point
: 8
- Bidirectional
point : -
- Response
speed : 300 uSec(max.)
- Voltage of
Operation (operation circuit voltage) : Input�F12 -- 24VDC
- Voltage of
Operation (operation circuit voltage) : Output�F12 -- 24VDC
- Built-in power
supply : -
- Input
circuit : Opto-isolated input (Sink output)
- Output
circuit : Opto-isolated open collector output (Sink type)
|
