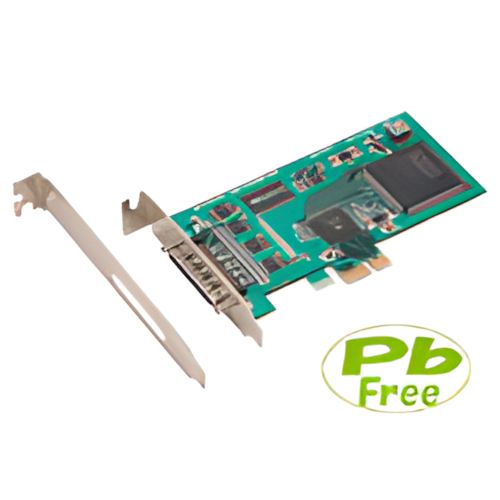

Product Description:
"It is an interface
board for PCI Express bus conformity. it can count a pulse signal from
an outside device input. 32 bits up/down counter has 4 channel.
It is
connected to a rotary encoder, a linear scale and can use it.
Input
interface of a pulse signal is the non-insulated LVTTL level input that
can input a high-speed pulse signal. The high-speed data
transmission
between A board and PCs are possible by bus master transfer.
Attachment Windows version driver(API-PAC(W32))."
Features
- "32 bits up/down
counter(which the input of two-phase signal and single-phase
alternating current signal is possible) 4 channels are equipped,
The
pulse signal input(a non-insulation LVTTL level)to 10MHz at the maximum
is possibility; (as for the smallest phase difference that can
distinguish two-phase input 25nsec)."
- It
can converted into differential input interface by using differential
unit [CTP-4D] and connection cable [CNT-68M/50M] sold separately.
- It puts one point
of control signal for each channel (counter start/ stop and pre-sets).
- "It
can sample a count value in sampling rate of 20MHz at the
maximum. In
addition, high-speed data transmission between a board and PCs are
possible without hanging load to CPU by Bus master teansfer function."
- "In
according with the arbitrary value that a count value set, Outbreak of
interrupt, the output of an outside signal, pre-set and zero clear of a
count value are possible."
- "It
is equipped with the function that is similar to CNT32-4MT(LPCI) for
PCI and to CNT32-4MT(CB) for CardBus. Connector shape and
connector
signal placement are compatible with CNT32-4MT(LPCI) and
CNT32-4MT(CB). In addition, it supports a Low Profile PCI slot or
a
standard PCI slot (change it with an attached bracket)."
Environmental correspondence
Environmental
correspondence : Lead-Free
Counter motor control
- Bus :
Low Profile
- Bus :
PCI Express
- Function
: Counter
- The number of
motor channels : -
- Motor speed
range : -
- The number of
counter channels : 4ch
- Count system
: 32bit Up/Down
- Counter response
speed : 10MHz
|
