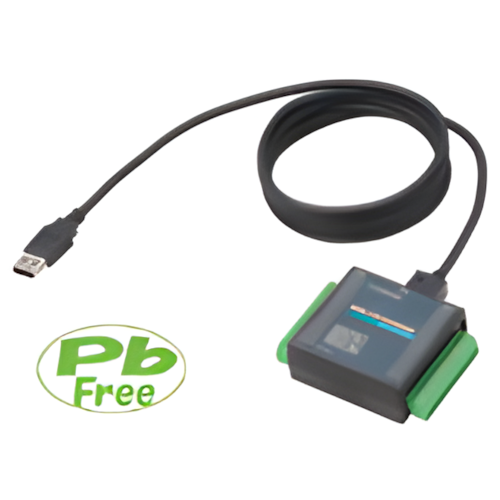

Product Description:
"It is a digital input
and output terminal for USB2.0 which performs bidirectional input and
output of digital signal (LVTTL(3.3V) level) easily by being connected
to USB interface of a PC. The digital signal can used input and
maximum 24 points in the output. By attached driver
library[API-USBP(WDM)], It can make applications software for Windows
with various programming languages that support Win32API functions such
as Visual Basic or Visual C++."
Features
- "Three groups
adding up eight points as one group, 24 points of bidirectional digital
input and output are possible."
- "By a
non-insulated LVTTL level (positive logic), input and output is
possible."
- "It is based on an
USB2.0/USB1.1 standard, and high-speed transfer in HighSpeed(480Mbps)
is possible."
- It can used
without connecting an outside power supply by bus power drive.
- "By applications
software, change setting of input and output is possible."
- It adopts the
screw type connector that wiring is easy.
Environmental correspondence
Environmental
correspondence : Lead-Free
Digital I/O
- Bus :
USB
- Function
: I/O
- Input point
: -
- Output point
: -
- Bidirectional
point : 24
- Response
speed : 200nsec(max.)
- Voltage of
Operation (operation circuit voltage) : Input�F3.3VDC-LVTTL
- Voltage of
Operation (operation circuit voltage) : Output�F3.3VDC-LVTTL
- Built-in power
supply : -
- Input
circuit : LVTTL level input (Positive logic)
- Output
circuit : LVTTL level output (Positive logic)
|
