Product Description:

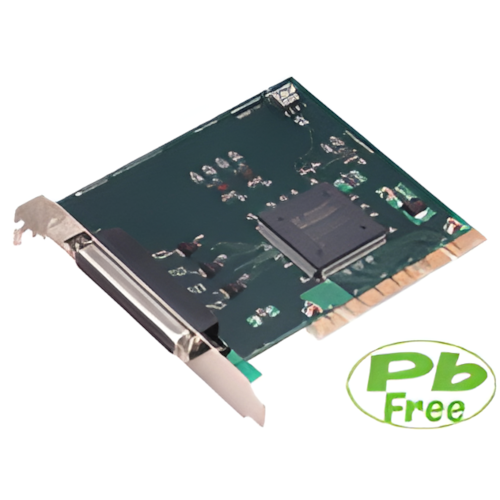

PIO-16/16T(PCI)H is the interface board of the PCI bus conformity which
outputs and inputs a TTL level digital signal. The board is capable up
to 16 input and 16 output. The driver (API-PAC(W32)) for Windows and
Linux appending.
Electric Certification Compliancy: CE
Environment Compliancy: RoHS Directive
- A high-speed response is possible at TTL level input and output.
- Signal arrangement of a connector is PIO-16/16T (PCI)
compatibility.
- The TTL level digital signal of 16 points can be inputted.
- It can output 16 points open collector type digital signal.
- Input 16 points signal can be used as an interruption input.
Moreover,
the edge of the input signal which generates interruption can also be
chosen. It has the digital filter function in which the noise and
chattering of an input signal can be prevented.
- Output rating is designed by a maximum of 30 VDC(s) and 40mA per
point.
| Digital I/O |
| Bus |
PCI
|
| Function |
I/O |
| Input |
16 |
| Output |
16 |
| Bidirection |
-
|
| Working voltage |
Input: 5VDC-TTL; Output:
5VDC-TTL |
|
