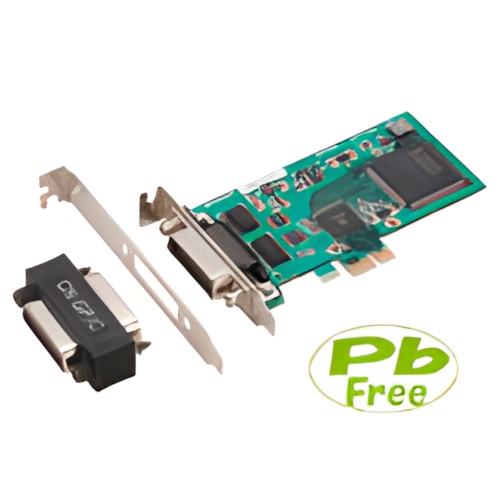

Product Description:
This product is an
interface board of PCI bus conformity equipped with Bus master transfor
in accordance with IEEE - 488.1 and IEEE - 488.2. It can perform
communication control or data analysis of GPIB bus line of various
machinery having GPIB interface with a PC. GPIB communication
driver
(API-PAC(W32)) for Windows version GPIB communication, LabVIEW
Attachment. Using a collection of ActiveX components for
measurement
system development sold separately[ACX-PAC(W32)], you can more easily
develop a higher-performance application in a short term.
Features
- It is possible
that
Communication to machinery having communication interface of 488.2 IEEE
standard conformity with a transfer speed of greatest
1.5Mbyte/sec.
- It can forward
large-capacity data between a PC and boards without hanging load to CPU
by Bus master transfer.
- It carries FIFO of
each 2Kbyte for the transmission / the reception and can communicate
fast without affecting quantity of data.
- It is equipped
with a GPIB bus analyzer function. It can do GPIB of bus line
signal analysis while communicating.
- It has a highly
precise application timer built-in. It can perform monitor in
correct time at windows environment.
- Support Low
Profile size slot and Standard size slot(change it with an attached
bracket).
Environmental correspondence
Environmental
correspondence : Lead-Free
Communication
Bus
: Low Profile
Bus : PCI Express
Function : GPIB
The number of channels : 1ch
Insulation : -
Transmission system : IEEE-488/488.2
Access speed : 1.5Mbyte/sec(Max.)
|
