Product Description:

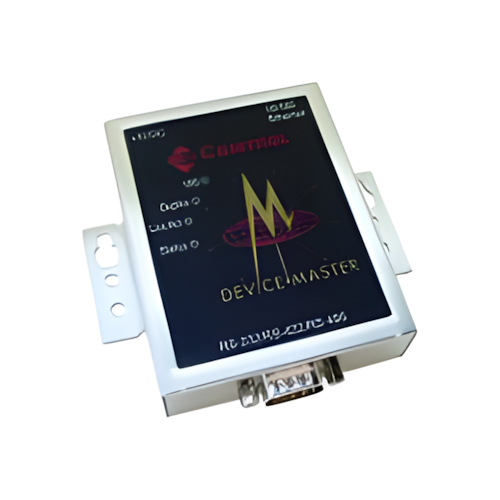

The Comtrol DeviceMaster RTS 1-Port is a single-port device server
designed for network-enabling serial communications devices. When used
with the included NS-Link driver software and a host PC, the
DeviceMaster RTS enables placement of COM or TTY ports anywhere on an
Ethernet network or across the Internet. In applications where
connecting legacy serial devices to a PC without software changes is a
requirement, a pair of DeviceMaster RTS units can be used to create a
point-to-point serial tunnel across the network that seamlessly
transfer serial data via TCP or UDP socket connections.
Device Type |
Terminal server |
Width |
2.8 in |
Depth |
3.6 in |
Height |
0.8 in |
Processor / Memory / Storage |
RAM Installed (
Max ) |
8 MB |
Flash Memory
Installed (Max) |
4 MB flash |
Networking |
Form Factor |
Panel-mountable |
Connectivity
Technology |
Wired |
Data Transfer
Rate |
230 Kbps |
Data Link
Protocol |
Ethernet, Fast Ethernet, RS-232,
RS-422, RS-485 |
Network /
Transport Protocol |
TCP/IP |
Remote
Management Protocol |
SNMP, Telnet, HTTP |
Expansion / Connectivity |
Interfaces |
1 x serial - RS-232/422/485 - 9 pin
D-Sub (DB-9)
1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 |
Miscellaneous |
Mounting Kit |
Required |
Compliant
Standards |
CE,
FCC Class A certified, UL, TUV, cUL, EN 60950, EN55022, ICES-003, IEC
61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3,
IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 60950,
EN55024, CISPR 22, AS/NZS 3548, RoHS, CSA C22.2 No. 60950 Third Edition |
Power |
Power Device |
Power adapter - external |
Voltage Required |
AC 100 V ( 50/60 Hz ) |
Power
Consumption Operational |
2.1 Watt |
Software / System Requirements |
Software Included |
Drivers & Utilities |
Manufacturer Warranty |
Service &
Support |
2 years warranty |
Service &
Support Details |
Limited warranty - 2 years |
Environmental Parameters |
Min Operating
Temperature |
32 °F |
Max Operating
Temperature |
165.2 °F |
Humidity Range
Operating |
20 - 80% |
|
