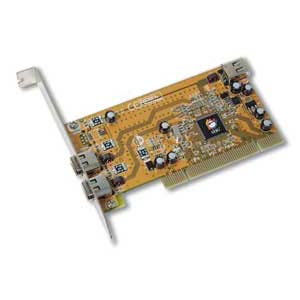

Product Description:
MODEL- NN-440012-S8 VENDOR- SIIG
FEATURES- 1394 3-Port PCI i/e RoHS compliant
Add (3) IEEE 1394 ports- 2 external and 1 internal, to your PC for
easy device connection and expansion.
Supports most DV camcorders, hard disk drives, printers, and other
1394 equipped audio/video devices including TVs, VCRs, and DVDs.
Data transfer rates up to 400Mb/sec.
Works with most Sony, Panasonic, Canon, and many other DV camcorders
for digital video creating/editing. (DV editing software not
included).
Includes 1394 3-Port PCI i/e and User's manual.
* Compliant with IEEE 1394-1995, 1394a-2000 and OHCI 1.1 standards
* Compliant with PCI Plug-n-Play 2.2
* Hot-swapping feature allows you to connect/disconnect devices without
powering down the system.
* Supports serial bus data transfer rates of 100, 200 and 400Mb/sec.
* Adds 3 IEEE 1394 ports to your PC for high-speed I/O connection and
supports up to 63 devices.
-- SPECIFICATIONs -----------------------------------
INTERFACE/BUS- 32-bit PCI
CHIPSET - TSB43AB23 (TI single chip)
CONNECTORs - (2) external IEEE 1394a 400Mbps ports (6-pin connector)
(1) internal IEEE 1394 400Mbps port (6-pin connector)
REQUIREMENTS - PC : Pentium or equivalent computer with one available PCI
slot.
Windows 98SE/ME/2000/XP
MAC: Power Mac computer with an available PCI slot
Mac OS 8.6 or later
APPROVALS - FCC Class B (DoC) & CE
