Product Description:
APC offers a wide variety of Basic Rack Power Distribution Units
(PDUs), which allow users to distribute power outlets to rack-mount
equipment. Horizontal and vertical units are available as well as a
variety of power inputs and outputs to fit most power environments.
| Product Description |

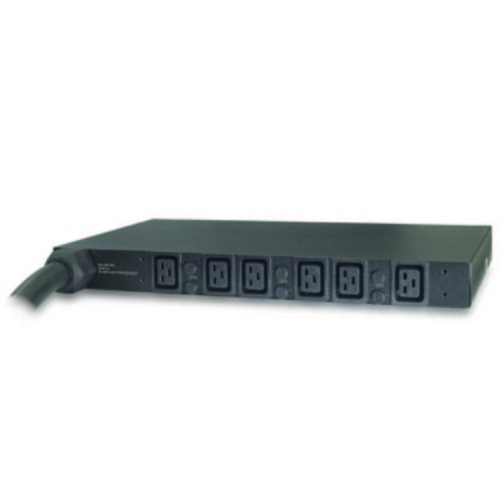

APC Basic Rack PDU power distribution strip |
| Device Type |
Power distribution strip |
| Form Factor |
Rack-mountable 1U |
| Dimensions (WxDxH) |
17.2 in x 10 in x 1.7 in |
| Weight |
14.6 lbs |
| Input Wiring |
3-phase |
| Input Voltage |
AC 208 V |
| Output connector(s) |
6 x power IEC 320 EN 60320 C19 |
| General |
| Device Type |
Power distribution strip |
| Form Factor |
Rack-mountable |
| Height (Rack Units) |
1U |
| Width |
17.2 in |
| Depth |
10 in |
| Height |
1.7 in |
| Weight |
14.6 lbs |
| Power Device |
| Input Voltage |
AC 208 V |
| Input Voltage Margin |
± 10% |
| Input Wiring |
3-phase |
| Frequency Required |
47 - 63 Hz |
| Input Connector(s) |
1 x Hubbell CS8365C |
| Output connector(s) |
6 x power IEC 320 EN 60320 C19 |
| Max Electric Current |
40 A |
| Circuit Protection |
Circuit breaker |
| Miscellaneous |
| Cables Included |
1 x power cable - 8 ft |
| Compliant Standards |
UL, cUL, UL 60950, CSA 22.2 No. 60950 |
| Environmental Parameters |
| Min Operating Temperature |
23 °F |
| Max Operating Temperature |
113 °F |
| Humidity Range Operating |
5 - 95% |
|
