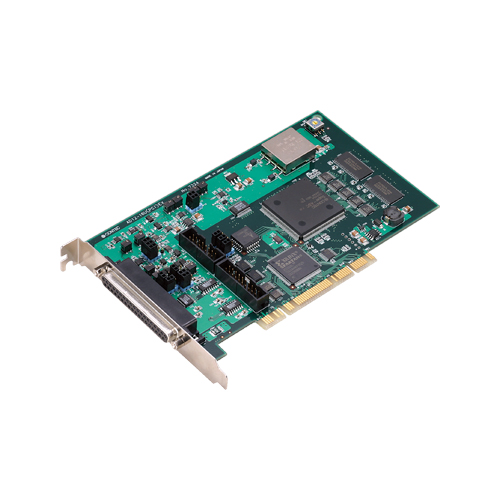

Product Description:
Features :
- 12 bit A/D converter loading and the sampling of a maximum of 10µsec/ch are possible.
- The buffer memory of mass 16M data and the variegated sampling control function are carried: The buffer memory of 16M data which can be used in FIFO or RING form is carried on a board. The sampling as background processing independent of the throughput of a personal computer is possible. Moreover, a start/stop of a sampling are possible which not only use the command of software but also by the Height of an analog signal(conversion data comparison) or detection of a TTL level signal(external trigger).
- The input of 16 channels is possible (8 channels differential input): Selection of single-end input 16 channels or differential input 8 channels is possible. In the order of a conversion channel can be arbitrary setup. As an option, extension of 16 channels(a total of 32 channels) is possible.
- An analog output and digital input and output are loaded together: It loads together one analog output and each four TTL digital input and output.
- High efficiency is condensed in compact PCI short size.
- Further prepare many options for extend a function such as Buffer amplifier, simultaneous sampling, and insulation current / thermocouple input, a lowpass filter, a cable, etc.
Specifications :
Analog I/O
Bus : PCI
Function : Input
Function : Output
The number of input channels : Single end 16ch (Differential 8ch)
Input range : ±10V
Input range : ±5V
Input range : ±2.5V
Input range : 0 -- 10V
Input range : 0 -- 5V
The number of output channels : 1ch
Output range : ±10V
Output range : ±5V
Output range : 0 -- 10V
Resolution : 12bit
A/D conversion speed : 1µsec/ch(max.)
D/A conversion speed : 6µsec/ch(max.)
Digital I/O
Bus : PCI
Function : I/O
Input point : 4
Output point : 4
Bidirectional point : -
Response speed : 200nsec(max.)
Voltage of Operation (operation circuit voltage) : Input -- 5VDC-TTL
Voltage of Operation (operation circuit voltage) : Output -- 5VDC-TTL
Built-in power supply : -
Input circuit : TTL level input (Positive logic)
Output circuit : TTL level output (Positive logic)
|
