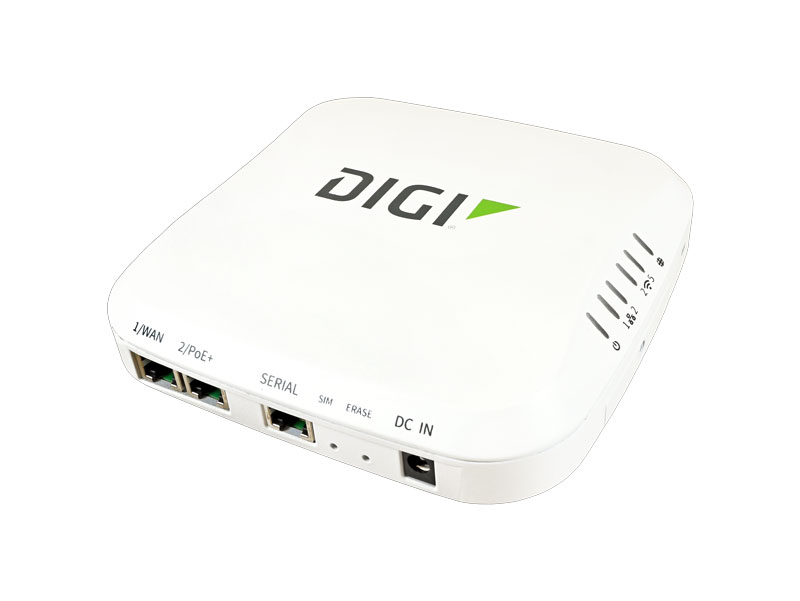

Model: Digi EX50

• Cellular connectivity:
  • 5G NR: n1, n2, n3, n5, n28, n41, n66, n71, n78, n79; C-Band
  • 4G LTE-Advanced Pro: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71; CBRS, LAA
  • 3G HSPA+: B1, B2, B3, B4, B5, B6, B8, B9, B19
  • Antenna connectors: (4) 50 Ω SMA (center pin: female)
  • SIM slots: (2) Mini-SIM (2FF); software selectable, hardware switchable; SIM slot cover plate
• Software and management:
  • ?Software: Digi Accelerated Linux (DAL OS); secure, reliable, intelligent, customizable
  • Remote management: Digi Remote Manager®, security, management, updates, alerts, scheduling and intelligence
  • Local management: Web Interface (HTTPS); Command Line Interface (SSH, serial port)
• Performance:
  • ?Ethernet throughput: 2.0 Gbps
  • Cellular throughput: 1.0 Gbps
  • IPsec VPN throughput: 500 Mbps
  • VPN tunnels: 10 tunnels
  • Client count: 50 clients (typical)
• Processor:
  • ?Application processor: ARM® Cortex®-A53, 1.8 GHz, quad-core, 64-bit
  • Memory: 512 MB RAM, 512 MB flash
• Ethernet: (2) RJ-45; 10/100/1000/2500 Mbps (auto-sensing)
• Wi-Fi:
  • Radios: Wi-Fi 6 / 802.11ax, enterprise-grade, dual-band simultaneous, 2x2 MIMO; 2.4 GHz: 802.11b/g/n/ax; 2.4 GHz and 5 GHz: 802.11a/n/ac/ax
  • Antennas: Integrated 2x2 MIMO, 2.4 with 8 dBi gain, 5 GHz with 5 dBi gain
  • Security: Open, Enhanced Open, WPA, WPA2, WPA3; Personal, Enterprise
  • Modes: (4) Wi-Fi access points; (2) Wi-Fi clients, (50) Wi-Fi users (typical)
• Serial: (1) RS-232 (RJ-45); Cisco straight-through pinout; for out-of-band management of network, software selectable
• Operating temperature: 0° C to 40° C (32° F to 104° F) with included commercial-rated power supply; -30° C to 60° C (-22° F to 140° F) with Power over Ethernet or industrial-rated power supply
• Approvals: visit www.digi.com/resources/certifications for latest certifications
• Accessories: includes DC power supply, mounting hardware, Ethernet and serial cables
