Product Description:

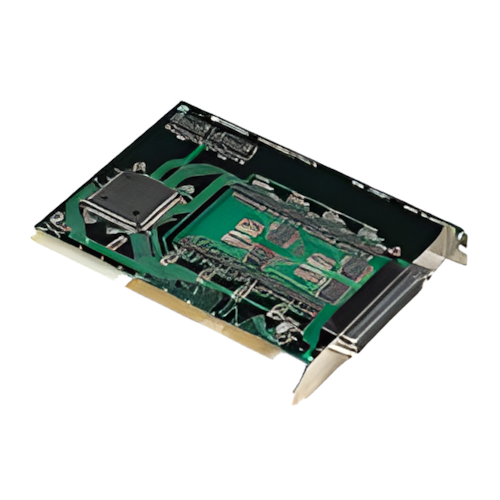

This product is PC/AT which performs an isolated type digital
output,
and an interface board for the compatible machines. This board
can be
used being able to mount in the expansion slot or I/O extension
unit of
the main part of a personal computer, and can be outputted a
maximum of
32 points on this one board.
Electric Certification Compliancy: CE
Environment Compliancy: N/A
- Noise-protection nature is improving by Opto-isolated output.
- Four groups and the digital current sink type signal of 32
points can be outputted by making eight points into one group.
- Output rating is designed by the large scale of maximum
DC+35V
and 100mA (however, 1 common per a maximum of 2A) per
point.
Digital I/O |
Bus |
ISA |
Function |
Output |
Input |
- |
Output |
32 |
Bidirection |
- |
Working voltage |
Output: 12--24VDC |
|
