Product Description:

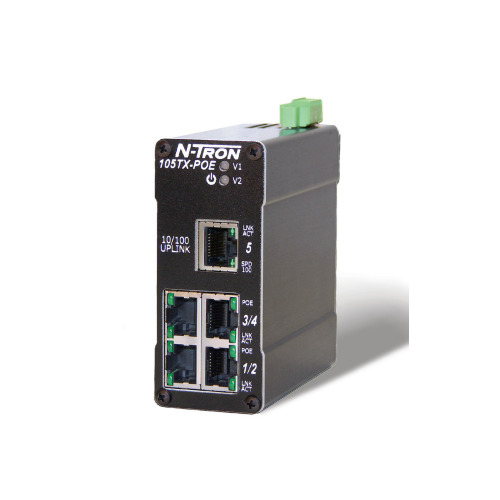

The 105TX-POE Unmanaged Industrial Ethernet Switch is
designed to trasmit power, along with data, over an Ethernet
network and is ideal for PoE capable devices where running
an AC power feed is either not possible or cost effective. This
feature allows an end user to power a PoE camera, wireless
access point, or any other PoE capable device without the
need for running separate wires for power. This also allows the
ability for a centralized battery backup for all these devices.
Features:
- Designed to Transmit Power, along
with
data over an Ethernet Network
- Ideal for PoE Cameras, Wireless
Access
Point, or other PoE Devices
- Five 10/100BaseTX RJ-45 Ports (4
iPoE
Ports)
- Extended Environmental
Specifications
- -40º to 85ºC Operating
Temperature
- Compact, Space Saving
Package
- Full IEEE 802.3 and 802.3af
Compliance
- Unmanaged Operation
- Extended Environmental
Specifications
- Unmanaged Operation
- Automatic Detection of Connected
PoE
Devices
- Support for Full/Half Duplex
Operation
- Auto-sensing Duplex, Speed, and
MDIX
- Up to 1.0 Gb/s Maximum
Throughput
- Full Wire Speed
Communications
- Supports 15.4 Watts per port (13
Watts at
the PD)
- Redundant Power Inputs (46-49
VDC)
- Power Fault Status LED
- LED Link/Activity Status
Indication
- LED iPoE Status
Indication
- Hardened Metal DIN-Rail
Enclosure
Specifications:
Physical
- Height: 3.50" (8.89cm)
- Width: 1.50" (3.81 cm)
- Depth Incl. DIN-Rail Mount: 4.22" (10.72 cm)
- DIN-Rail: 35mm
Electrical
- Input Voltage: 46-49 VDC
- Steady Input Current Under Full Load: 1.6 A@48V
- Steady Input Current with No PoE, Switch Full Load:
65mA@48V
- Inrush: 26Amp/1.3ms@48V
Environmental
- Operating Temperature: -40oC to 85oC
- Storage Temperature: -40oC to 85oC
- Operating Humidity: 10% to 95% (Non Condensing)
- Operating Altitude: 0 to 10,000 ft.
Reliablity
Network Media
- 10BaseT: >Cat3 Cable
- 100BaseTX: >Cat5 Cable
Connectors
- 10/100BaseTX+PoE: Four (4) RJ-45 TX/PoE Copper
Ports
- 10/100BaseTX: One (1) RJ-45 TX Copper Port
Recommended Wiring
Clearance
- Front: 2" (5.08 cm)
- Top: 1" (2.54 cm)
|
