ASUS

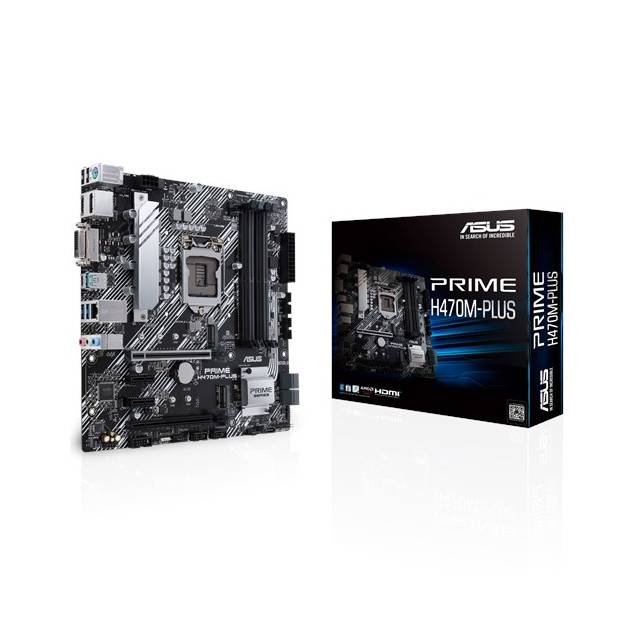

PRIME H470M-PLUS/CSM


4716801_ASUS_PRIMEH470MPLUSCSM.JPG-FULL_METAL_SENSOR_MF_4MM_FLUSH_DC_PNP_NO_M12_CONN
Manufacturer ASUS
Mfg. Part # PRIME H470M-PLUS/CSM
ITEM# 4128781
Unit Price $113.68 (~CAD$141.71)
Availability Back Order
[ Get notified when product becomes available. ]
Buy


Shipping and Handling:
 INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation

No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]
Product Description:

Specifications

  • Mfr Part Number: PRIME H470M-PLUS/CSM
  • CPU:
    • Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
    • Supports Intel 14 nm CPU
    • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
  • Chipset: Intel H470
  • Memory:
    • 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    • Dual Channel Memory Architecture
    • Supports Intel Extreme Memory Profile (XMP)
    • OptiMem
  • Graphic:
    • Integrated Graphics Processor
      - 1 x DisplayPort 1.4
      - 1 x HDMI 1.4b
      - 1 x DVI-D
  • Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots:
    • Intel 10th Gen processors
      - 1 x PCIe 3.0 x16 (x16 mode)
    • Intel H470 Chipset
      - 1 x PCIe 3.0 x16 (x4 mode)
      - 2 x PCIe 3.0 x1
  • Storage:
    • Total supports 2 x M.2 slots and 5 x SATA 6Gb/s ports
    • Intel H470 Chipset:
      - 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
      - 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
      - 5 x SATA 6Gb/s port(s)
      - Support Raid 0, 1, 5, 10
      - Intel Rapid Storage Technology supports
      - Intel Optane Memory Ready
  • LAN: Realtek I219-V 1Gb Ethernet
  • Audio:
    • Realtek ALC887 8-Channel High Definition Audio CODEC
      - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    • Audio Feature :
      - LED-illuminated design
      - Audio Shielding
      - Dedicated audio PCB layers
      - Premium Japanese audio capacitors
  • USB Ports
    • Rear USB Port ( Total 6 )
      - 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C)
      - 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
      - 2 x USB 2.0 port(s)(2 x Type-A)
    • Front USB Port ( Total 8 )
      - 4 x USB 3.2 Gen 1 port(s)
      - 4 x USB 2.0 port(s)
  • Software Features:
    • ASUS Exclusive Software
    • Armoury Crate
    • AI Suite 3
      - Performance And Power Saving Utility
    • EPU
    • Digi+ VRM
    • Fan Xpert 4
      - EZ update
    • AI Charger
    • WinRAR
    • UEFI BIOS
    • ASUS EZ DIY
      - ASUS CrashFree BIOS 3
      - ASUS EZ Flash 3
      - ASUS UEFI BIOS EZ Mode
  • ​ASUS Special Features:
    • ASUS 5X PROTECTION III
      - ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
      - ASUS LANGuard
      - ASUS Overvoltage Protection
      - ASUS SafeSlot Core+
      - ASUS Stainless-Steel Back I/O
    • ASUS Q-Design
      - ASUS Q-DIMM
      - ASUS Q-Slot
    • ASUS Thermal Solution
      - Aluminum heatsink design
    • ASUS EZ DIY
      - Procool
  • Back I/O Ports:
    • 1 x PS/2 keyboard/mouse combo port(s)
    • 1 x DVI-D
    • 1 x DisplayPort
    • 1 x HDMI
    • 1 x LAN (RJ45) port(s)
    • 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C)
    • 2 x USB 3.2 Gen 1 Type-A
    • 2 x USB 2.0
    • 3 x Audio jack(s)
  • Internal I/O Ports:
    • 1 x CPU Fan connector(s)
    • 3 x Chassis Fan connector(s)
    • 1 x AIO_PUMP connector
    • 1 x Lighting Control RGB Strip Header(s)
    • 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
    • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    • 1 x SPI TPM header
    • 5 x SATA 6Gb/s connector(s)
    • 1 x S/PDIF out header(s)
    • 1 x 4-pin EATX 12 V Power connector
    • 1 x 24-pin EATX Power connector(s)
    • 1 x 8-pin EATX 12V Power connectors
    • 1 x Front panel audio connector(s) (AAFP)
    • 1 x Clear CMOS jumper(s)
    • 1 x System panel connector
    • 1 x COM port header
  • Accessories:
    • I/O Shield
    • 2 x SATA 6Gb/s cable(s)
    • 1 x M.2 Screw Package
    • 1 x Supporting DVD
    • User manual
  • BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
  • Manageability: WOL by PME, PXE
  • Operating System: Windows 10 64-bit
  • Form Factor:
    • mATX Form Factor
    • 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
  • *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
