Product Description:

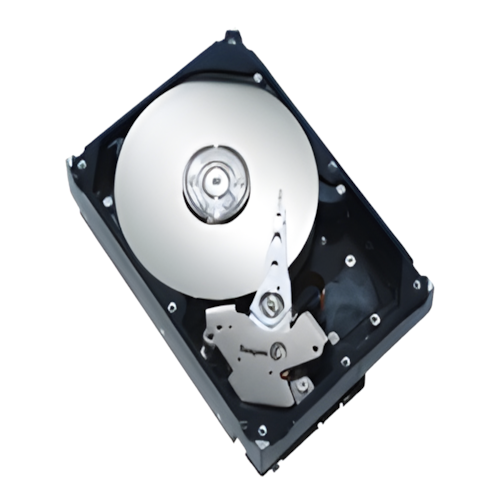

Barracuda 7200.9 is a member of the Seagate 3.5-inch family of high-capacity desktop drives targeted at mainstream and high-performance PCs and advanced storage applications. The product enables OEMs and system builders to qualify one family of drives from a premier provider for a wide range of storage applications.
| General |
| Device Type: |
Hard drive, internal |
| Width: |
4 in |
| Depth: |
5.8 in |
| Height: |
1 in |
| Hard Drive |
| Form Factor: |
3.5" x 1/3H |
| Capacity: |
400 GB |
| Interface Type: |
ATA-100 |
| Buffer Size: |
16 MB |
| Features: |
3D Defense System |
| Compliant Standards: |
S.M.A.R.T. |
| Performance |
| Drive Transfer Rate: |
100 MBps (external) |
| Seek Time: |
11 ms (average) |
| Average Latency: |
4.16 ms |
| Spindle Speed: |
7200 rpm |
| Reliability |
| Non-Recoverable Errors: |
1 per 10^14 |
| Start / Stop Cycles: |
50,000 |
| Expansion / Connectivity |
| Interfaces: |
1 x ATA-100, 40 pin IDC |
| Compatible Bays: |
1 x internal, 3.5" x 1/3H |
| Miscellaneous |
| Compliant Standards: |
RoHS |
| Manufacturer Warranty |
| Service & Support: |
5 years warranty |
| Environmental Parameters |
| Min Operating Temperature: |
32 °F |
| Max Operating Temperature: |
140 °F |
| Shock Tolerance: |
63 g @ 2ms (operating) / 350 g @ 2ms (non-operating) |
|
