Product Description:
description

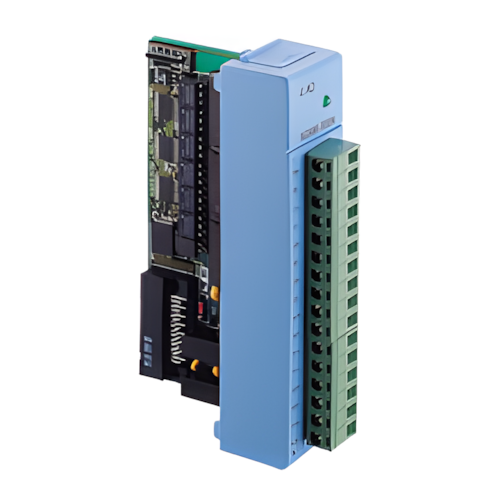

The ADAM-5024 is a 4-channel analog output module. It receives the
digital input from the ADAM-5000 system or the host computer on RS-485
network. The format of the data is engineering units. It then uses the
D/A converter controlled by the system module to convert the digital
data into output signals. You can specify slew rates and start up
currents through the configuration software. The analog output can also
be configured as current or voltage through the software utility. The
module protects your equipment from ground loops and power surges by
providing optical isolation of the D/A output and transformer based
isolation up to 500 VDC.
Features:
Channels: 4
Effective resolution: 12-bit
Output type: mA, V
Output range: 0 ~ 20 mA, 4 ~ 20 mA, 0
~10 V
Isolation voltage: 3000 VDC
Accuracy: ±0.1% of FSR for
current output
Resolution: ±0.015% of FSR
|
|
