Product Description:
description

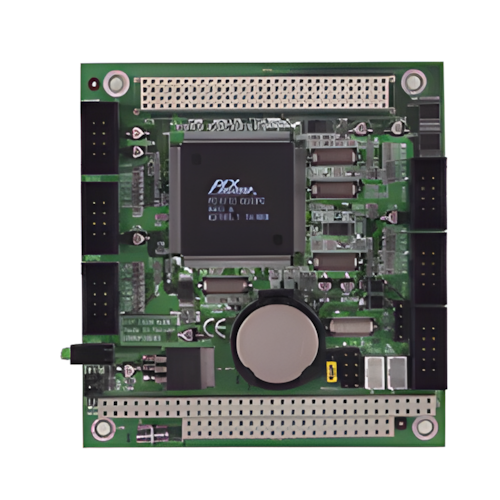

DVP-1020 is a 4 ~ 16 channel video input PC/104-Plus video capture
module that supports up to D1 resolution with 120/100 total frame rate.
DVP-1020 allows installation of up to 3 modules in one PC system by
utilizing an onboard DIP switch setting that identifies card ID by LED
indicators. DVP-1020 supports NTSC/PAL signals and digitalizes data to
PC through PC/104-Plus interface. DVP-1020 also has a built-in watchdog
timer to reset the system and prevent crashes when an unknown error
occurs. DVP-1020 is also designed with a programmable software
protection key for anonymous user software copy protection.
Features:
4 channel composite
input, captures up to D1 resolution at 30/25 fps frame rate
4 Conexant fusion 878A video capture
chips on board
Built-in 128-byte user programmable
EEPROM
Up to 3 modules installed in one PC,
set by onboard DIP switch
8-bit TTL/CMOS level Digital I/O
Watchdog timer
Programmable software protection key
|
|
