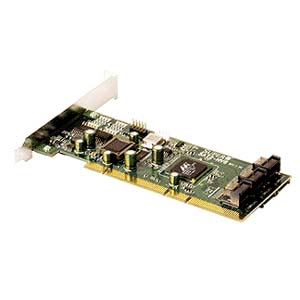

MODEL- AOC-SAT2-MV8       VENDOR- SUPERMICRO

FEATURES- 8-Port SATA Card
       Supermicros SAT2-MV8 SATA controller (based on the Marvell
        Hercules-2 Rev. C0 SATA host controller) provides 8-port SATA HDD
        support via 64-bit PCI-X bus interface with high-performance
        features. Serving as a 2nd generation SATA storage card, the
        AOC-SAT2-MV8 offers double the data transfer rate of its 1st
        generation counterpart and offers functionalities for server,
        workstation and network storage environments in a low-profile PCI
        platform.
       The SAT2-MV8 is ideal for storage arrays for Network Attached
        Storage (NAS) and Nearline Backup. Built with superior quality and
        features, the SATA-MV2 will become an integral part of todays data
        storage solutions.
       The SAT2-MV8 Installation CD contains drivers for 32-bit and 64-bit
        Microsoft Windows and RedHat/SuSE/Fedora Linux operating systems.
* 8-channel Serial-ATA adapter with 300MB/s per channel
* 64-bit PCI-X interface
* Software RAID supported

  -- SPECIFICATIONs -----------------------------------
INTERFACE/BUS - 32-bit PCI
DEVICE SUPPORT- Up to 8 Serial-ATA disk drives, activity LED indicated for
                  each drive (LED cables not included) .
TRANSFER RATES- Up to 3.0 Gigabits/sec per port
RAID          - Software RAID support
BUS TYPE      - 64-bit PCI-X 133MHz
CONNECTORS    - Internal: (8) Serial ATA connectors (Eight 2 foot Serial-
                              ATA cables included)
O/S SUPPORT   - Windows 2000, XP, 2003
                Windows XP EM64T, 2003 EM64T
                RedHat 9.0
                RHEL 3 (Updates 2, 3, and 4)
                RHEL 3 EM64T/X86_64 (Updates 3, 4)
                RHEL 4, RHEL 4 EM64T/X86_64
                SuSE 9.1, 9.2
                SuSE Enterprise 9
                Fedora Core 3
DIMENSIONS    - (standard & low-profile bracket); 2.5" H x 6.6" L
POWER         - Requirements 0.7 amps @ +5V
 www.supermicro.com
