Product Description:

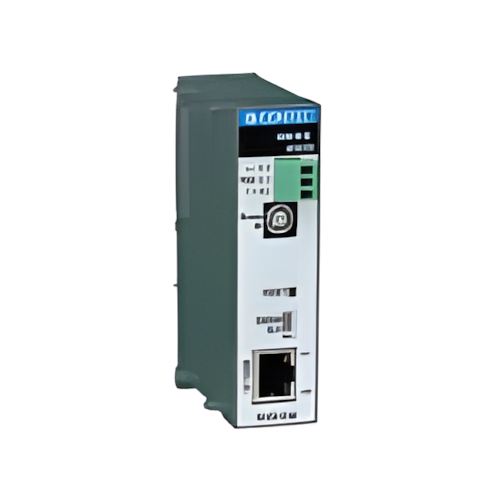

SVR-IOA (FIT) GY is the management unit controller which collects data
automatically from the I/O controller unit of a F&eIT series
product, and can perform a data set to an I/O controller unit. The I/O
assistant server has composition connected with a host controller via
10BASE-T/100BASE-TX I/F. Data collection and the data set of the I/O
controller unit to eight sets are made in one set I/O assistant server.
- Web monitoring: Carry a Web server (Java applet) function. The
surveillance and updating of I/O information can be performed using a
WWW browser from the personal computer of the distant place. A
surveillance screen can arrange the GUI parts (graph, a slider, button,
etc.) of preinstallment freely.
- Management of an I/O controller unit: The I/O controller unit of
a
maximum of 8 is patrolled automatically, I/O information is collected,
and a higher rank host is provided with I/O information by one access.
The load of a circuit is also mitigated.
- Data communications with DDE client software (Excel, InTouch,
etc.) are made by the DDE server of standard appending.
- The unit main part is equipped standardly with 35mmDIN rail
attachment mechanism.
Electric Certification Compliancy: CE
Environment Compliancy : Lead-Free
| Application
Server |
| Type |
I/O Assist |
| F&eIT |
| Product function / Classification |
Application server |
|
