Product Description:

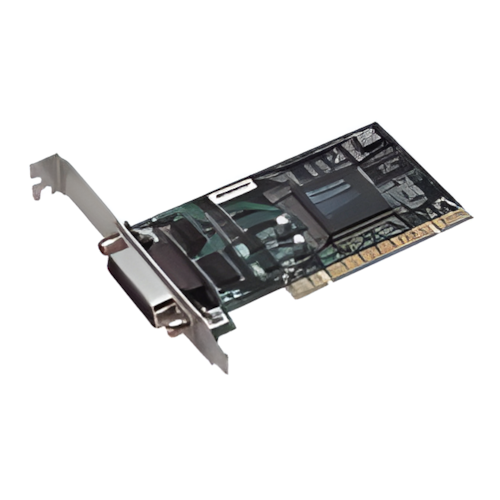

"This product is a PCI bus compatible interface board with support for bus master operation and which complies with IEEE-488.1 and IEEE-488.2. The card can be used in a PC to control communications with devices that support the GPIB interface and perform GPIB bus line data analysis. With the Windows version, the LabVIEW version driver (API-PAC(W32)). "
[Features]
- "As the card complies with the IEEE-488.2 standard, you can control any external device that supports this standard. The maximum data transfer speed for communications is 1.5Mbyte/sec. "
- The bus master data transfer function enables large quantities of data to be transferred between the board and PC without loading the CPU.
- "The board has separate 2Kbyte FIFO buffers for sending and receiving data, allowing both small and large volumes of data to be transferred at high speed. Interface messages also use a FIFO to enable high-speed transmission. "
- "The board features a bus analyzer function. This not only allows the signals on the GPIB bus to analyzed, but also permits signal analysis to be performed while the board is performing GPIB communications. "
- "In addition to the functions of the earlier GPIB controller (µPD7210), the board also supports the SPAS event generated when a serial poll occurs. This gives you a high level of flexibility in constructing your system. "
- The board includes a high-precision application timer to allow accurate time monitoring to be performed under Windows.
[Safe Standard] Safe Standard : CE
[Environmental correspondence] Environmental correspondence : Lead-Free
[Communication ]
Bus : PCI
Function : GPIB
The number of channels : 1ch
Insulation : -
Transmission system : IEEE-488/488.2
Access speed : 1.5Mbyte/sec(Max.) |
|
