Product Description:

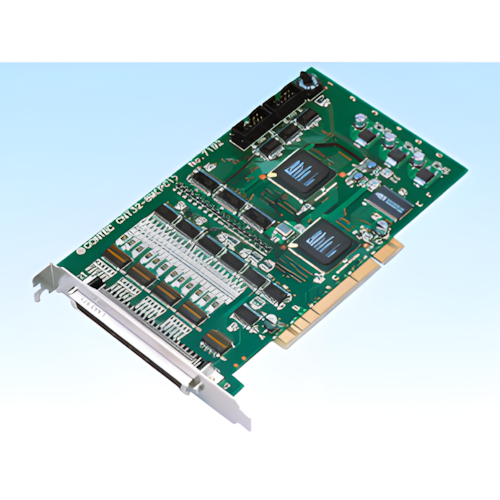

CNT32-8M(PCI) is the interface board of the PCI bus conformity which inputs and counts the pulse signal from external equipment. The high-speed data transmission between the board by the PCI bus master transfer function and a personal computer is possible. 32-bit up-and-down counter can use it for those with eight channel, a rotary encoder, a linear scale, etc., connecting. The input interface of a pulse signal is the differential input or TTL level input which can input a high-speed pulse signal. The Windows version driver (API-PAC(W32)) appending.
Environment Compliancy: RoHS Directive
- The input of two phase signal and a single phase signal is possible.
- The input of the pulse signal to 10MHz is possible (the minimum phase difference in which the distinction in the case of being twophase signal input is possible is 25ns).
- An input can choose either a differential input or a TTL level input for every channel.
- The protection element is mounted in an input circuit and surge protection is realized.
- Each channel has one control signal input.
- The high-speed data transmission between a board and a personal computer is possible, without applying load to CPU by the PCI bus master transfer function.
Counter motor control
| Bus |
PCI |
| Function |
Counter |
| Number of motor ch |
- |
| Motor speed range |
- |
| Number of counter ch |
8ch |
| Count method |
32bit Up/Down |
| Counter response frequency |
TTL : 10MHz / Differential : 10MHz |
|
