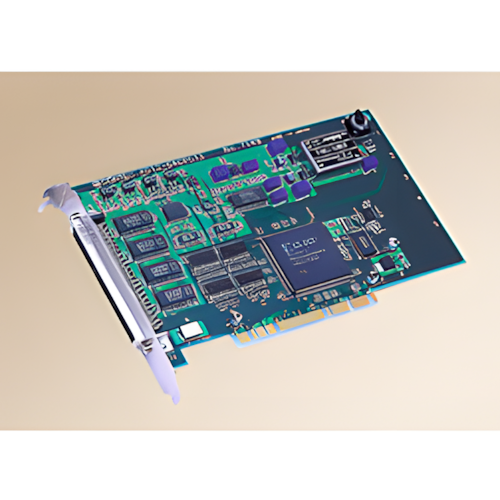

Product Description:
FEATURES
Multi-channel analog input capability
8 different selectable input ranges including both
unipolar and bipolar
Provides two different sampling functions
Four each TTL-level digital input/outputs
Programmable timer function
External trigger input capability
Interrupt generation available by multiple causes
|
|
SPECIFICATIONS
ANALOG INPUT
No. of channels: 64 single-ended, 32
differential
Range:
- Non-insulated bipolar: ±10V, ±5V, ±2.5V,
±1.25V
- Non-insulated unipolar: 0~10V, 0~5V, 0~2.5V, 0~1.25V (specifiable by
software for each channel)
Voltage: ±15V max.
Impedance: 1M£[ max.
Resolution: 12-bit
Conversion rate: 10£gsec/channel max.
Non-linearity error:
- ±2LSB (±10V, ±5V, 0~10V, 0~5V range)
- ±4LSB (±2.5V, ±1.25V, 0~2.5V range)
- ±8LSB (0~1.25V range)
Conversion start trigger: Software, sampling clock
Sampling clock:
-Internal: 10,000~1,073,741,824,000nsec (specified in steps of 250nsec)
-External: TTL-level falling edge
DIGITAL I/O
Input:
- No. of channels: 4 non-insulated (TTL-level active high)
Output:
- No. of channels: 4 non-insulated (TTL-level active high)
PROGRAMMABLE TIMER
Setting cycles: 500~1,073,741,824,000nsec (specifiable in
steps of 250nsec)
Status: Count-up, count-up overrun
-Timer output signal: TTL-level 250nsec low pulse, low output current
IOL = 24mA
External trigger input
-Signal: Non-insulated one point input (TTL-level rising edge)
-Status: Trigger input, trigger input overrun
INTERRUPT
Level: 1 point
Source: 8 types
GENERAL
I/O addresses: 32ports occupied
Connectors:
- CN1: PCR-E96LM or equivalent
Power consumption: +5VDC 700mA max.
Operating condition: 0~50°C, 20~90% RH (no condensation)
PCI bus specification: 32-bit, 33MHz, 5V
Dimensions: 6.9" x 4.2" (176.4mm x 107.0mm)
|
|
