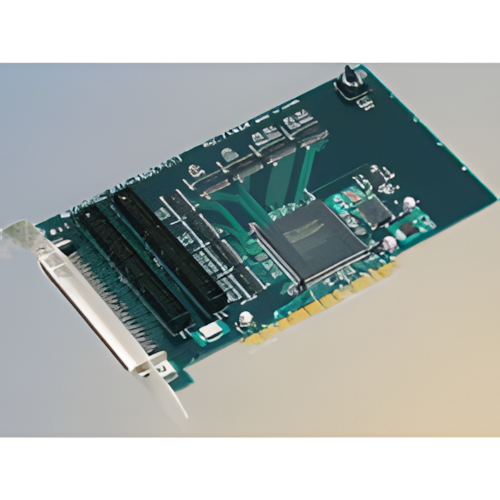

Contec Americas 48 CHANNEL high current drive bi-directional digital I/O

Manufacturer Contec Americas Mfg. Part # PIO-48D(PCI) ITEM# 383962 Unit Price $274.32 (~CAD$341.94) Availability In Stock Buy

Shipping and Handling: Singular Select... Regular [6-9 Business Days] -- $54.7[CAD$68.19] Priority [4-6 Business Days] -- $96.2[CAD$119.92] Extreme [2-4 Business Days] -- $142[CAD$177.01]  INTERNATIONAL GROUND SHIPPING: For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation No other hidden fees will be collected from you when packages arrive. Guaranteed [ Detailed Explanation ]

Product Description: FEATURES 48 bi-directional input/output signals, compatible with i8255 mode 0 TTL-level I/O features fast signal response All channels can be used to generate interrupt requests High current drive capability through use of bus transceiver ICs   FUNCTIONAL SPECIFICATIONS Transfer type: TTL-level, positive logic Pull-up resistor: 10k7omega; Number of channels: 48      (all can be used as interrupts) Interrupt: Can combine all 48 interrupt signals to one interrupt request signal in the INTA Interrupt events: Rising edge of input signal Response time: 200nsec or less Output Current:      IOL = 24mA (max)      IOH = 15mA (max) I/O address: Any 32-byte boundary   GENERAL SPECIFICATIONS Allowable boards in one system: 16 (max) Power consumption: 5VDC 600mA (max) Operating temperature: 0 to 50°C Operating humidity: 20 to 90% (no condensation) Wiring distance: 1.5m (typical) Dimensions: 6.93" (l) x 4.21" (h)      176mm x 109mm Weight: 4.59 oz (130g)
