Product Description:

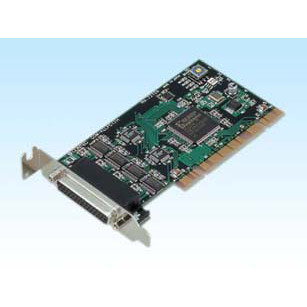

It is the interface board of the PCI bus conformity which expands the RS-232C serial communication port of four channels in a personal computer. It can mount also in a standard PCI slot by bracket (appending) change. UART162850 of 128byte FIFO is carried according to each channel and transmission and reception. It can be used as a Windows and standard COM port for Linux by the setup by the attached standard COM driver. A program is also possible at a Win32 API communication function or MSComm. 9 pin D-SUB connector distribution cable option
Environment Compliancy: RoHS Directive
- High-Speed communication of a maximum of 921.6Kbps (it sets up according to a channel)
- Optimization of transceiver timing is possible at FIFO trigger size change.
- It is lineup about three models of 1, 2 and 4 channels
- It recognizes as Windows and a standard COM port of Linux by the appending driver. Programming in communication control (MSComm) of Win32API communication functions (CreateFile and WriteFile etc.) or Visual Basic is also possible.
Communication
| Bus |
PCI [LowProfile] |
| Function |
RS-232C |
| Channel |
4ch |
| Isolation |
- |
|
