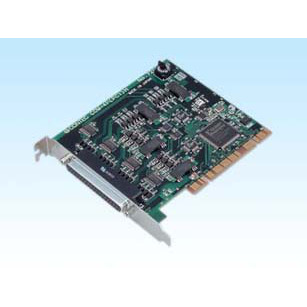

Product Description:
Specifications :
Number of channels 4ch
Interface type RS-232C
Isolation Channel Isolation/Bus Isolation
Isolation voltage Channel Isolation: 500VDC, Bus Isolation: 1000VDC
Transfer method Asynchronous serial transfer
Baud rate 2 to 921,600bps *1 *2
Data length 5, 6, 7, 8 bits
1, 1.5, 2 stop bits *1
Parity check Even, Odd, Non-parity *1
Controller chip 162850 or equivalent
(Each channel has 128-byte receive and 128-byte transmit FIFO buffers.)
Connecting distance 15m(Typ.)
Interrupt requests 1 level use *3
I/O address Any 32-byte boundary
Power consumption 5VDC 1000mA (Max.)
Operating
temperature
: 0 to 50�C, 10 to 90%RH(No condensation)
PCI bus
specification
: 32bit, 33MHz, 5V or 3.3V *4
|
