Product Description:

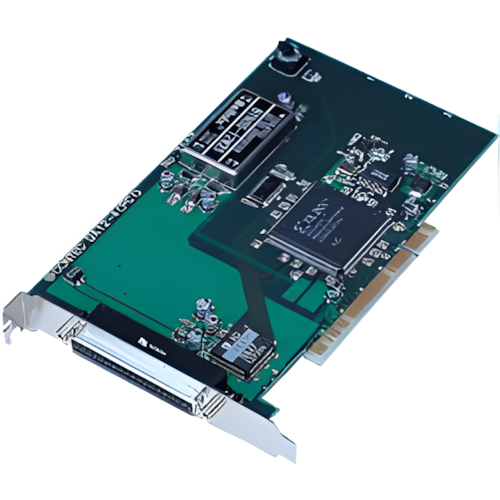

DA12-4(PCI) is non-isolated PCI-compliant, multi-channel analog output
board. DA12-16(PCI) has 16 channels for the analog output function for
converting 12bit digital signals to analog voltages, respectively.
- Support for unipolar and bipolar output ranges: An output range
can be set for each channel by software.
- Two output modes selectable: The board offers a choice of two
output
modes selectable. One updates only the output voltage of a specified
channel and the other updates the output voltages of all channels.
- Capable of updating the output voltage using a sampling clock:
The
board can update the output voltage periodically using the internal
sampling clock or in synchronization with external events using an
external sampling clock.
- Output-voltage power-on reset function: The board resets the
output
voltage of all channels to 0V when the power supply is turned on.
- Internal
independent programmable timer: On-board programmable timer can monitor
the set time by checking the status inputs and interrupts.
- Independent, TTL-level external trigger input function: The
external
trigger input function can monitor the trigger input signal and the
state of the external signal by checking the status inputs and
interrupts.
Analog
I/O |
Bus |
PCI; |
Function |
Output; |
Number of the
input channels |
-; |
The number of
output channels |
4ch; |
Resolution |
12bit; |
Input Range |
-; |
Output range |
10V; 5V; 0 -- 10V; |
|
