Product Description:

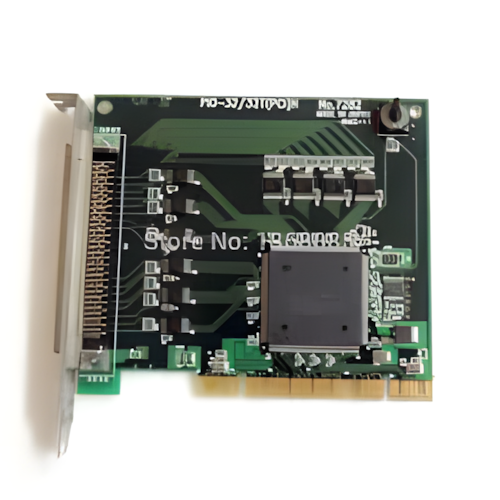

This board is a PCI bus-compliant interface board for input/output of
TTL Level digital signals. The PIO-32/32T(PCI)H can input and output up
to 32 channels. With the Windows version, the Linux version driver
(API-PAC(W32)).
Electric Certification Compliancy: CE
Environment Compliancy: RoHS Directive
- TTL level input/output function, without any isolation, features
a very quick signal reponse.
- 32bit TTL-level input of digital signals.
- 32bit open-collecter output of digital signals.
- You can use 32 signal channels of the input signals as interrupt
inputs. You can also select the interrupt trigger edge of the input
signal.
- Digital filtering that prevents input signal noise and
chattering.
- Up to 30VDC, 40mA per signal, max. output.
| Digital I/O |
| Bus |
PCI |
| Function |
I/O |
| Input |
32 |
| Output |
32 |
| Bidirection |
- |
| Working voltage |
Input: 5VDC-TTL; Output:
5VDC-TTL |
|
