Product Description:

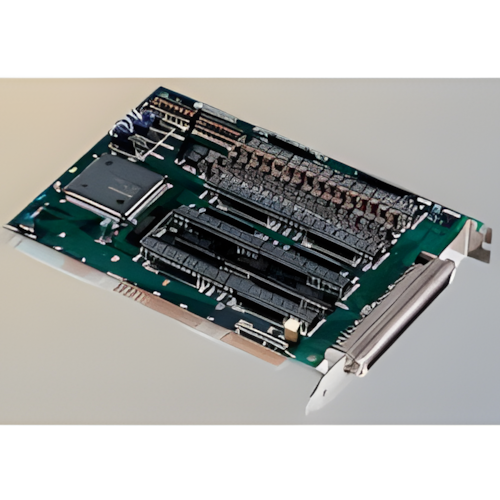

This product is PC/AT which performs isolated type digital input and
output, and an interface board for the compatible machines. This board
can be used being able to mount in the expansion slot or I/O expansion
unit of the main part of a personal computer, and can be outputted and
inputted a maximum of 32 points by this one sheet.
Electric Certification Compliancy: CE
Environment Compliancy: N/A
- Noise-protection nature is improving by Opto-isolated input and
output.
- Four groups and the digital current sauce type signal of 32
points can be inputted by making eight points into one group.
- Four groups and the digital current sink type signal of 32 points
can be outputted by making eight points into one group.
- Four of 32 input signals can be used as an interruption input.
Moreover, the edge of the input signal which generates interruption can
also be chosen.
- Output rating is designed by large scale (maximum DC35V and 100mA
(however, 1 common per a maximum of 2A)) per point.
- The option function other than a general-purpose input-and-output
function is prepared.
| Digital I/O |
| Bus |
ISA |
| Function |
I/O |
| Input |
32 |
| Output |
32 |
| Bidirection |
- |
| Working voltage |
Output:
12--24VDC; Input: 12--24VDC |
|
