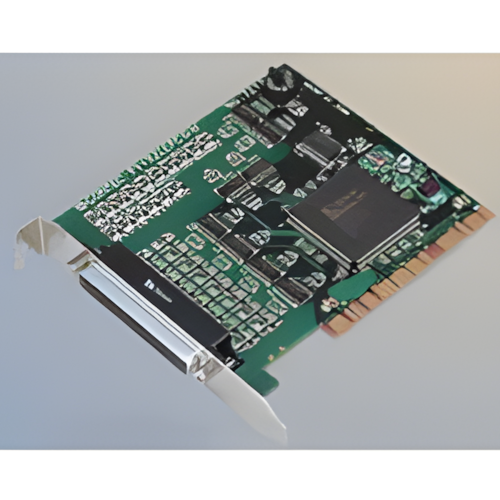

32 CHANNEL opto isolated digital input PCI card

Manufacturer	Contec Americas
Mfg. Part #	PI-32L(PCI)H
ITEM#	383890
Unit Price	$313.03 (~CAD$390.20)
Availability	In Stock
Buy

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

[ View Detail Product Info ]

Product Description:
template product descrip
FEATURES

	A different external power supply can be used for each common (16 channels)
	Opto-coupler provides isolation between the PCI bus and the I/O interface
	All input signals can be used as interrupts
	Digital filter to prevent erroneous input from noise or chatter

INPUT

	Type: Opto-isolated input for current sink output (negative logic) 16 channels share a positive common
	No. of channels: 32 (all can be used for interrupts)
	Resistance: 4.7k£[
	Current ON: 2.0mA (min)
	Current OFF: 0.16mA (max)
	Interrupts: 32 interrupts combine to one as the INTA
	Interrupt events: Either rising or falling edge
	Response time: 200µsec (max)

GENERAL

	I/O address: Any 32-byte boundary
	Isolated voltage: 1000Vrms
	Boards in one system: 16 (max)
	External power: 12~24VDC (±10%)
	Power consumption: 5VDC 200mA (max)
	PCI bus specification: 32-bit, 33MHz
	Operating temperature: 0~50°C
	Operating humidity:10~90% RH (no condensation)
	Dimension: 4.8" x 4.2" (121.69mm x 105.68mm)
	Weight: 4.58oz (130g)
