Contec Americas
32 CHANNEL TTL-Level digital I/O

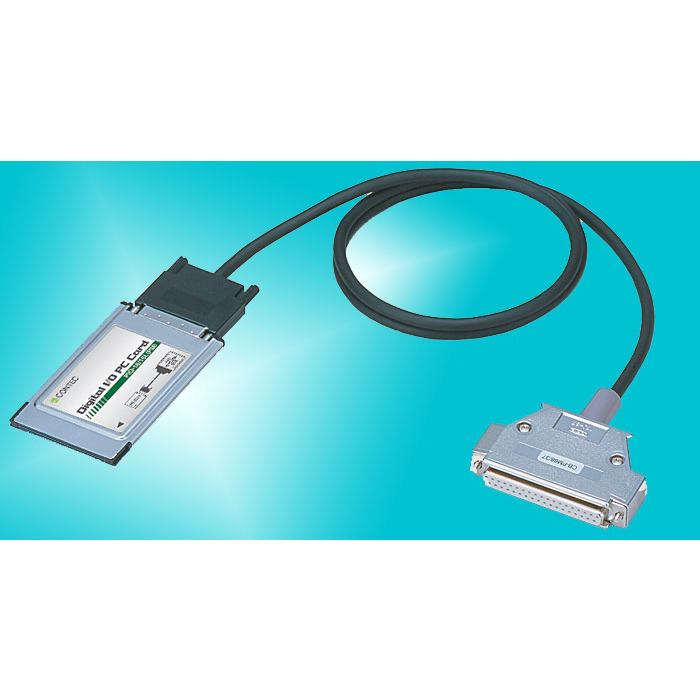

885510_Contec_Microelectronics_PIO32DPM.jpg-

Manufacturer	Contec Americas
Mfg. Part #	PIO-32D(PM)
ITEM#	383884
Unit Price	$258.01 (~CAD$321.61)
Availability	In Stock
Buy

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

Product Description:
Features :

Non-isolated TTL-level input / output allows for quick response

Input /output signals are active low signals
High level represents logic 0
Low level represents logic 1

Has digital filter to prevent input signals from carrying noise or chattering

Specifications :
INPUT / OUTPUT

I/O format: Non-isolated TTL-level level (negative logic)

Number of channels: 32ch

Pull-up resistors: 100k£[

Interrupts: 32interrupt input signals are arranged into single output of INTA

Interrupt events: Generated at rising edge (HIGH to LOW transition) or falling edge (LOW to HIGH)

Input voltage rating: -0.5V to +5.5V

Input current rating: (per channel)
I_OL = 6mA
I_OH = 2mA

Response time: 200µsec (max)
GENERAL

Interrupt level: 1 level use

I/O address: 8bit x 16port boundary (common to both inputs and outputs)

Power consumption: +5 VDC 200mA max.

Operating temperature: 0 to 50°C

Relative Humidity: 10 to 90% (no condensation)

Card slot specifications: 16bit PC Card conforming to PCMCIA2.1 or later

Card size: PCMCIA Type II
