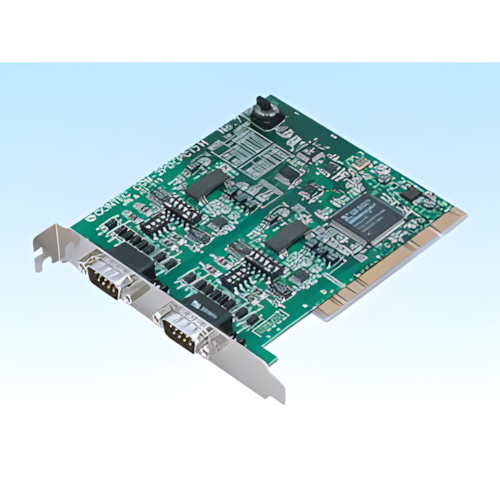

Product Description:
Specifications :
Number of channels 2 channels
Interface type RS-422A/RS-485
Isolation Channel Isolation/Bus Isolation
Isolation voltage Channel Isolation: 1000VDC, Bus Isolation: 1000VDC
Transfer method Asynchronous serial transfer (Full/Half duplex)
Baud rate 2 to 921,600bps *1 *2
Data length 5, 6, 7, 8 bits
1, 1.5, 2 stop bits *1
Parity check Even, Odd, Non-parity *1
Controller chip 162850 or equivalent
(Each channel has 128-byte receive and 128-byte transmit FIFO buffers.)
Connecting distance 1200m(Typ.) *3
Interrupt requests 1 level use *4
I/O address Any 32-byte boundary
Power consumption 5VDC 550mA (Max.)
Operating
temperature
: 0 to 50�C, 10 to 90%RH (No condensation)
PCI bus
specification
: 32-bit, 33MHz, 5V
Dimension (mm) 121.69(L) � 106.38(H)
|
