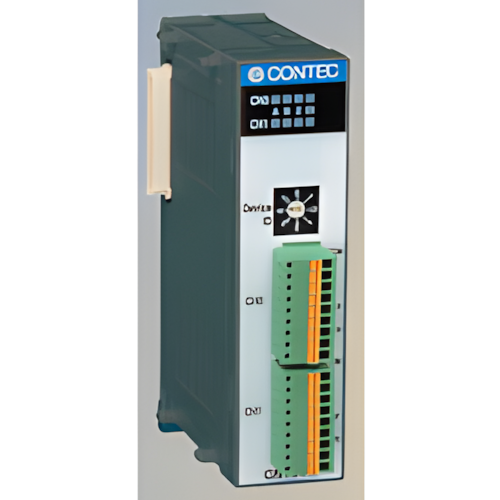

Product Description:
This product is applicable to positioning control combining the count
of a high-speed pulse signal, and an encoder. It connects with the
controller module of F&eIT series, and a system can be built, or it
can connect with CNT24-2(USB) GY, and an input channel can be added.
Moreover, since CPU which controls an external signal and a module has
isolated with the digital isolator, it does not have electric influence
of external on a host computer as it is.
- The 24-bit up/down count for two channels can be performed.
- 2 phase pulse signals, such as a rotary encoder or a linear
gauge, are countable.
- It has equipped the general-purpose I/O signal each one channel.
- Since Device ID can be set up with a rotary switch, management of
apparatus number can be performed easily.
- A special tool was not needed but wiring has adopted the easy
screw-less connector plug.
- The module main part is equipped with 35mmDIN rail attachment
mechanism
as standard like other F&eIT series products. Moreover, since the
connection to a controller unit has unique composition with a stack
connection on the side, it does not use connection apparatus, such as a
back plain board, can constitute a system simply and smartly.
Electric Certification Compliancy: CE
Environment Compliancy : RoHS Directive
| Communication |
| Bus |
F&eIT |
| Function |
Counter |
| Number of counter ch |
2ch |
| Count method |
24bit Up/Down |
| Counter response frequency |
500KHz |
| F&eIT |
| Product
function / Classification |
Device module |
| I/O module |
| Function |
Counter Module |
|
